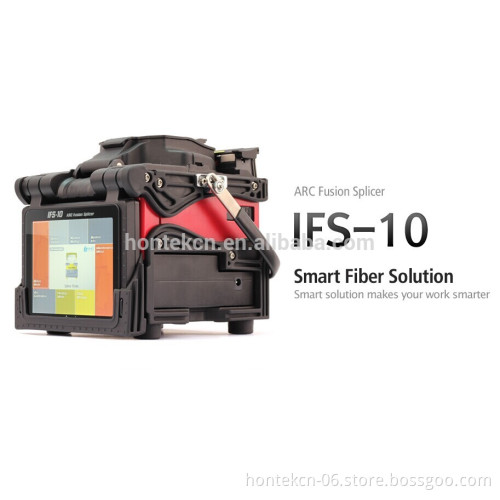

Fiber Optical Fusion Splicer INNO IFS-10, Splicing Machine with VF-78 cleaver

Specifications fiber splicing machine

1.2.8KG weight

2.9Sec Splicing

3.USB master port

4.Operates in Bi-Directional view

  Original ARC INNO IFS-10 Fusion Splicer IFS-10 Fiber optic fusion Splicing Machine with VF-78 Cleaver                      contact information Nancy Liu Viber / Tel : +86 15118174252 skype:   nancy.hsv             Features:      2.2kg weight (without battery) Splicing method: DACAS (Digital Analysis Core Alignment System) Harsh weather conditions adaptability Friendly smart GUI Large battery capacity: 350 Splice and Heat Quick optimize menu High precision splicing USB master port, easy to upgrade software Operate in Bi-directional view         Specifcitions:

Splicing Method	Core alignment
Applicable fiber	SM(ITU-TG.652),MM(ITU-TG.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Average loss	SM(0.02dB),MM(0.01 dB),DS(0.04 dB),NZDS(0.04 dB)
Return loss	>>60 dB
Splice time	SM fusion average 9s
Cleaved length	The fiber which coat-diameter is less than 0.25mm:8-16mm
The fiber which coat-diameter is lager than 0.25mm	least 16mm
Operating environment	elevation 0-5000meter,95% relative humidity,-10—50C
Magnification	XY style: 150power
	X/Y :300 power
Monitor	2CCD camera system,5inch LCD
Splice Programs	40 user mode,10 factory preset mode
Coating Diameter	100-1000um
Clading Diameter	80-150um
Splice memory	Can save 2000 record
Fiber Display	X/Y or XY,single X,Y
Proof test	2N(standard)
Heating programs	Preset 10kind heating mode
Heating time	FP-03 typical heating time 30s
Protection sleeve	60mm,40mm
Battery	Typical fusion 350 times
Power supply	AC 100-240V input or, DC 12-15V
Data output	USB master device and AV
Wind protection	The max wind speed 15m/s
size	168x145x160mm
weight	2.8Kg



	MODEL NO.	QTY.
IFS-10 Splicer	IFS-10	1
High Precision Cleaver	VF-78	1
Battery Pack	LBT-20	1
AC Adapter/Battery Charger	JS-126300-X	1
Power Cable	ACC-25	1
Extra Electrodes	E-50	1
Carrying Case	NBX-35	1
Cooling Tray	CG-22	1
Cigarette Lighter Cable	CJ-11	1
RS-232 Cable	RS-11	1
