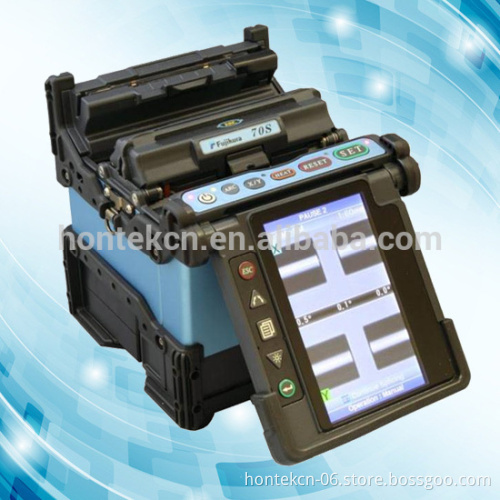

optic fiber optic cable fusion welding 70S with all language

optic fiber optic cable fusion welding  FSM-70S with all language , same as 80s splicing machine           contact information Nancy Liu Viber / Tel : +86 15118174252 skype:   nancy.hsv                  specification

Applicable fibres	SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others
Fibre Count	Single
Cladding diameter	80 to 150μm
Coating diameter	100 to 1000μm
Fibre cleaved length	5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss	0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time	7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss	60dB or greater
Splicing modes	100 splicer modes are available
Splice loss estimate	Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function	Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator
Storage of splice result	The last 2000 results to be stored in the internal memory.
Magnification	X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method	By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test	1.96 to 2.25N
Operating condition	0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater	Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time	13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection sleeve length	60mm, 40mm and a series of micro sleeves.
No. of splice/heating with battery	200 times of splicing and heat shrinking under with BTR-09
Power supply	Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals	USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection	Up to 15m/s wind velocity
Dimensions	146(W) x 159(D) x 150(H) mm Including wind protector, monitor, and rubber protector Excluding rubber foot
Weight	2.5 kg, with ADC-18 AC adaptor 2.7 kg, with BTR-09 battery
Electrode life	3000 arc-discharges

                                                                                                                            Standard Package

Item	Description	Model No.	Qty
1	Fusion Splicer	70S with CLAMP-S70A	1 pc
2	AC adaptor/battery charger	ADC-18	1 pc
3	AC power cord	ACC-XX	1 pc
4	Spare Electrodes	ELCT2-20A	1 pair
5	Cleaver	CT-30A	1 pc
6	Battery Pack	BTR-09	1 pc
7	USB cable	USB-01	1 pc
8	Quick reference guide	M-80S/19S-E	1 pc
9	Warning and cautions	W-70-E	1 pc
10	Instruction Manual	M-70	1 pc
11	Alcohol Pot	AP-01	1 pc
12	Battery charge cord	DCC-18	1 pc
13	Carrying Case	CC-30	1 pc
14	Screw Driver	SD-01	1pc
