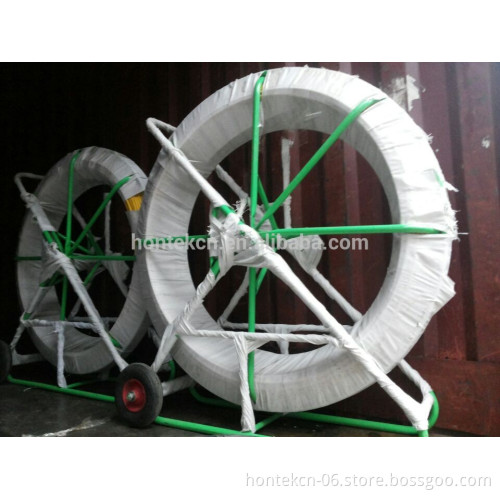

Fiberglass Cable Duct Rods price / Fiber cable rods excellent flexibility force made in China

Fiberglass Cable Duct Rods / Fiber cable rods  excellent flexibility force               contact information Nancy Liu Viber / Tel : +86 15118174252 skype:   nancy.hsv     Glass fibre cable rod technical specifications:

Glass fiber rod diameter	Φ4.5-16mm
Length	1-500m
Working temperature	-40+80
Min Bend Radius	295mm
Breaking tension	4.5T
Glassfiber density	150g/m

      1.constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.   2.Excellent flexibility force.   3.Tensile strength about 500 Kgf.   4.designed for heavy duty applications ensuring greater rigidity and strength, while supporting additional forces without resentment to the multiple curvatures.   5.Wheel assembly for easy transportation.   6.Guide rollers and the right parts for rotary coupling.   7.Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.   8. There is copper wire inside for tracing easily.               Technical data of fibre glass cable rod:       1. Glass reinforced composite core:       general properties

Property	value
keinforcement	E-glass fiber
glass content of inner part	75-80%
material of pulling rod	epoxy fiber glass(inner) high density polyethylene(outer)
density	>1.9gr/cm3
diameter tolerance	+/-0.10mm
work situation temperature	-40°C to +80°C

      Mechanical preperties

property	value
minimum pullling strength	4000 N+/-5%
tensile modulus	>30000Mpa
consistency of rod	150gr/m +/-5%
flexural modulus	>30000M pa
elongation at break	2.5-3%

      2. Polyethylene cover      Material:      Medium density polyethylene resin for the insulating and jacketing of telecommunications cables.

property	value
tensile strength	>15N/mm2
environmental stress & crack resistance	>1000 hr.
heat stability	OK.
carbon black	OK.
