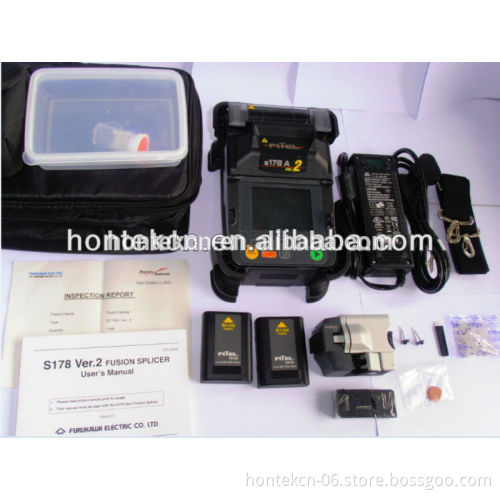

Furukawa Fitel S178A Fusion Splicer / splicing machine

Specifications

Applicable Fibers

SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber)

Cladding Diameter

80~150 μm

Coating Diameter

160~900 μm

Fibers Cleave Length

5~16 mm

Average Splice Loss

SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB

Splice Time

7 seconds (semi-auto mode)

9 seconds (regular mode)

Heat Time

25 seconds (40mm Sleeve, 60mm Sleeve) (Pre-heat mode)

31 seconds (40mm Sleeve, 60mm Sleeve) (regular mode)

Splice Programs

Max. 150

Automatic Splicing Selection

SM: SM, DSF, NZD, BIF/UBIF, MM: MM

Heat Programs

Max. 18

Automatic Heating Start

Available

Applicable Sleeves

20/40/60 mm

Fiber Holding

Tight holder (Loose tube applicable) or Fiber Holder System

Tension Test

1.96N

Fiber Image Magnification

304X, 608X

Splice Memory

Max. 2,000

Image capture Capacity

Last 100 images to be automatically captured + Up to 24 images to be stored permanently

Dimension

127W × 199D × 105H mm (not including shock absorber)

159W × 231D × 130H mm (including shock absorber)

Weight

1.9 kg (without battery)

2.3 kg (with two batteries)

Monitor

3.5” color LCD monitor

Data Output

USB ver.2.0 mini

Diaplaying Language

20 languages (e.g. English, Spanish, Japanese, Chinese)

Battery Capacity

Typical 80 splice/heat cycles with single battery

Typical 200 splice/heat cycles with 2 batteries

Altitude

5,000 mh

Operating Temperature

-10 to +50 °C (without excessive humidity)

Storage Temperature

-40 to +60 °C (without excessive humidity)

Power Source

AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 17 V
