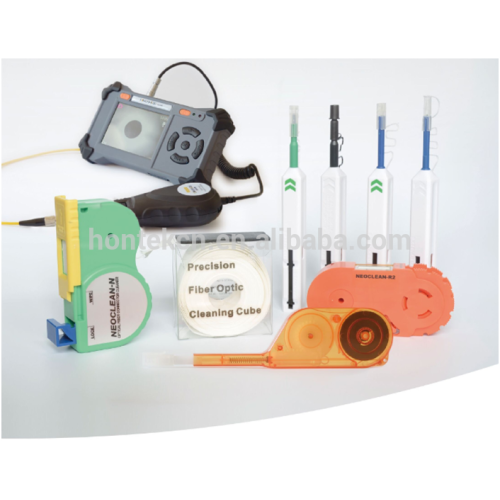

Fiber Optic Testing & Cleaning Tool Kit Fiber Tools Box HSV-403
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China (Mainland) |
|---|
The cause of many troubles in optical communication equipment iscontamination on the end face of optical connectors. HSV optical connector cleaners use fiber developed specifically for optical connectors, so even the smallest contaminants not visible to the naked eye are removed. We have prepared a full lineup of cleaners compatible with every type of optical connector. Please put our technology to work for you. Introduction Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made. The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic com-munication systems. Features 3.5-inch TFT color display Well-centered, high resolution image Image capture and storage Instant video recording 250x Magnification 4x Digital zoom Standard tips (SC, FC, ST, LC, MU, E2000) USB plug-and-play Specifications Mainframe | |
Display | 3.5” TFT-LCD, 320 x 240 pixels |
Dimensions | 170mm x 100mm x 40mm |
Weigh(including battery) | 200g |
Power Supply | Replaceable battery or universal input 5V DC adapter |
Battery | Rechargeable Li-Ion, 3.7V / 1450mAh |
Battery life | > 3 hours (continuous) |
Charger/AC adapter | US, EU, UK and Australian versions available |
Image / Video Storage | 8GB SD card |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -30°C to 70°C |
Inspection Probe | |
Magnification | 400X (9” monitor); 250x (3.5”monitor) |
Detection Limit | 0.5μm |
Focus Control | Manual , in-probe |
Principle | Bright field reflected light microscopy |
Dimensions | 180mm x 40mm x 30mm |
Weight | 200g |
Standard Accessories | |
Inspection Probe | x 1 |
Mainframe | x 1 |
AC power adapter/battery charger | x 1 |
Rechargeable battery pack | x 1 |
2.5mm tip for PC male connectors | x 1 |
1.25mm tip for PC male connectors | x 1 |
Tip for SC / FC PC female connectors | x 1 |
Tip for LC PC female connectors | x 1 |
Tip box | x 1 |
User Manual | x 1 |
Carrying case | x 1 |
Optional Accessories | |
2.5mm tip for APC male connectors | x 1 |
1.25mm tip for APC male connectors | x 1 |
Tip for SC APC female connectors | x 1 |
Tip for FC APC female connectors | x 1 |
Tip for LC APC female connectors | x 1 |
