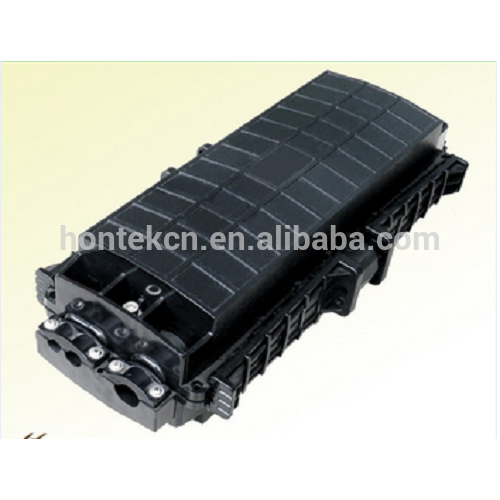

FTTH FTTB &FTTX Systems Fiber Optic Spice Closure

Product Name

Fiber optic splice closure

Color

black

Cores

bunchy 60cores,ribbon 96-144cores

Protection class

IP68

Seals

Mechanical seal

Material

PC

Cable out of the tube configuration

Up to four out of the tube fiber optic cable

Ports diameter(mm)

16~22mm

Fiber radius of curvature(mm)

30

Dielectric strength(kv)

1.5

Ambient temperature(°C)

-40~+60

Atmospheric pressure(Kpa)

70~1106

Tensile strength(N)

>1000

Anti-stress

>2000N/ 10cm2 Stress,Time 1min

Insulation Resistance

>2X10MΩ/500V(DC)

Compressive strength

15KV(DC)/1min. No breakdown.No flashover

Housing dimensions(mm)

425*163.5*87mm(L*W*H)

Splice Tray

Max 6 pcs, 24 cores each

Scope

Pole, buried, manholes, wall

Packing

0.075m³/8pcs

Total weight

1.46kg/1pcs
