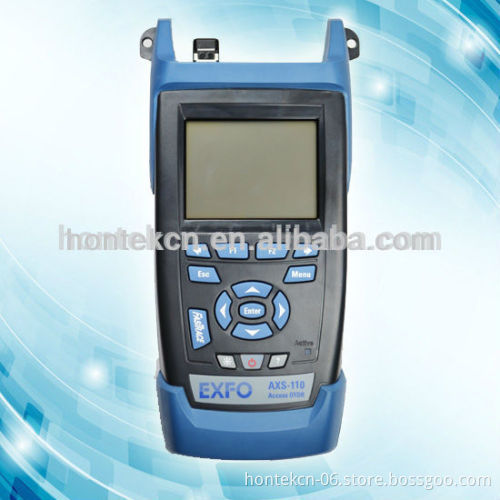

EXFO AXS-110 | All-Fiber OTDR | PON Network Testing

AXS-110 | All-Fiber OTDR | PON Network Testing   Applications FTTx/MDU PON network testing LAN/WAN testing Private network testing Key Features Event dead zone: 0.8 m Wavelengths: 1310/1490/1550/1625/850/1300 nm Dynamic range: up to 37 dB Battery autonomy: 8 hours EXFO Palm/handheld OTDR Meter AXS-110   IN STOCK     The AXS-110 OTDR: The LAN/WAN Test Solution Easy Location and Characterization of Events EXFO's AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office’s fiber, access and FTTH network applications, where events are usually closely spaced. Multimode and Singlemode Flexibility The AXS-110 combines singlemode and multimode functionalities, ideal for premises, private and enterprise network testing. Test multimode fiber within premises, or singlemode fiber between premises—all with a single OTDR unit—and maximize your return on investment. End-to-End PON Characterization The AXS-110 lets you test through high-port-count splitters—even 1 x 64 splitters—perfect for passive optical network (PON) testing, delivering these key advantages: Perfect tool for FTTx contractors and tier-2 certification of premises networks Pass/fail features that comply with industry standards such as TIA 568c and IEEE 802.3ah Highest dynamic range of the industry for a handheld OTDR Power meter option, for crosschecking the total loss using the built-in OTDR laser in continuous source mode The AXS-110 comes in three models: AXS-110 All-Fiber OTDR
Combining singlemode and multimode capabilities for enterprise, campus and access networks, this model offers the 850, 1300, 1310 and 1550 nm wavelengths, with respective dynamic ranges of 24, 25, 32 and 30 dB. AXS-110 Singlemode OTDR
Ideal for FTTx/access and CATV testing, this model is optimized for testing through PON-based splitters; it offers the 1310, 1490, 1550 and 1625 nm wavelengths, with respective dynamic ranges of 37, 33, 35 and 37 dB. AXS-110 Multimode OTDR
Optimized for enterprise testing on both 50 and 62.5 µm multimode fiber, this model offers the 850 and 1300 nm wavelengths, with respective dynamic ranges of 24 and 25 dB. Key Features FasTrace function: one-touch testing for top user-friendliness 8-hour power autonomy USB port (memory-stick compatible) for easy data transfer Large internal memory (up to 500 results) Transflective color display for viewing clear results under bright sunlight Superior automated analysis for a better, easier and faster diagnosis Automatic pass/fail analysis and macrobend locating

AXS-110		All Fiber OTDR
Includes :	- 2 rechargeable batteries (GP-1001) & AC adapter/charger
	- Soft carrying case (GP-10-061)
	- Shoulder strap
	- Certificate of Compliance
	- Test report
	- Instruction Manual (.pdf format)
	- Quick refence guide
	- Connector adapter EUI-XX *
Notes :	When ordering, specify prefered language for default software interface setup and documentation.
	Software language = A-English, C-Simplified Chinese, E-Spanish, F-French, J-Japanese, K-Korean, G-German and R-Russian
	If manual is not available in specified language, English version will be shipped.
	- CE mark
	- For European Community countries, please refer to the Recycling Fees price list page to find out the applicable amount



Model	Description
AXS-110-23B-XX	All Fiber OTDR 1310/1550nm, 37/35dB
AXS-110-000-04B-XX	Filtered 1625nm, 35dB second port option for live fiber testing
AXS-110-023B-04B-XX	Access OTDR 1310/1550nm, 37/35 dB first port and Filtered 1625nm, 37dB second port option for live fiber testing
AXS-110-236-XX	All Fiber OTDR 1310/1550/1490nm, 37/35/33 dB
AXS-110-12CD-XX	All Fiber OTDR 850/1300nm, 24/25 dB
AXS-110-12CD-23B-XX-XX	All Fiber OTDR 850/1300nm, 24/25 dB, 1310/1550nm, 32/30 dB
Options	Description
PM2X-XX	Power meter GeX
VFL	650 nm Visual Fault Locator with universal 2.5 mm adapter
Probe Options	Description
FP4S	FIP-400-P-SINGLE: 400X Video Probe. Comes w/ FIPT-400-FC-SC: FC-SC Bulkhead tip. FIPT-400-U25M: Univ. patchcord tip (2.5mm ferrule) Compartmented plastic case for tips. Software & Instruction manual on CD. Note: SK3 software is mandatory with this option.
FP4D	FIP-400-P-DUAL: 200X/400X Video Probe. Comes w/ FIPT-400-FC-SC: FC-SC Bulkhead tip. FIPT-400-U25M: Univ. patchcord tip (2.5mm ferrule) Compartmented plastic case for tips. Software & Instruction manual on CD. Note: SK3 software is mandatory with this option.
