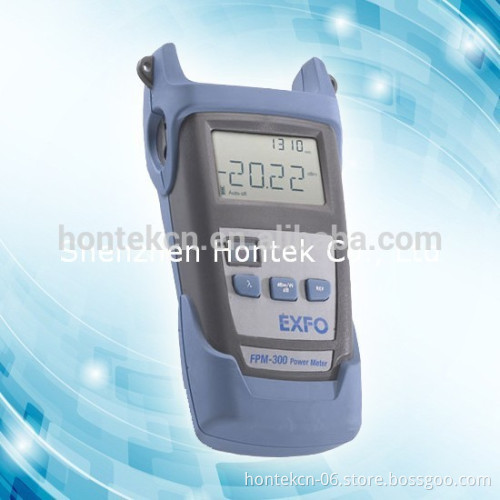

EXFO power meter High-power Ge detector FPM-300

EXFO power meter High-power Ge detector FPM-300         is part of EXFO is new line of handheld units, which includes the FLS-300 Light Source and the FOT-300 Optical Loss Test Set.   Be free to contact kitty if any questions, You can also log onto www.hontek.net  for more information!   kitty skype: kitty.hsv   Auto-Wavelength Recognition
The FLS-300 or FOT-300 units can transmit with a wavelength-identification digital encrypted protocol, enabling the FPM-300 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.   Distant Referencing
Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.   No Offset Nulling
Thanks to its unique design, the FPM-300 Power Meter reduces measurement time in typical measurement situations, as the need for an offset nulling is eliminated.   FTTx Ready
EXFOFPM-300 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.     Feature:
-Highly accurate unit offering 10 calibrated wavelengths and reference values
-Power autonomy of 300 hours
-Three-year warranty and recommended calibration interval, for dramatically reduced cost of ownership
-Ergonomic, eye-catching handheld package

Model	FPM-302	FPM-302X
Power meter port	Ge	GeX
Power range(dBm)	10 to −60	26 to −50
Range displayed (dBm)	Down to −65	Down to −50
Number of calibrated wavelengths	10	10
Power uncertainty	5 % 1 nW	5 % 10 nW
Resolution (dB)	0.01	0.01
Automatic offset nulling	Yes	Yes
Warmup time(s)	0	0
Display units	dB/dBm/W	dB/dBm/W
Automatic wavelength recognition	Yes	Yes
Screen refresh rate (Hz)	3	3
Tone detection (Hz)	270, 1 k, 2 k	270, 1 k, 2 k
Battery life (hours) (typical)	> 300	> 300
Warranty and recommended calibration interval (years)	3	3
General Specifications
Size (H x W x D)	18.5 cm x 10.0 cm x 5.5 cm	71/4 in x 4 in x 21/8 in
Weight	0.4 kg	0.9 lb
Temperature operating	−10 C to 50 C	14 F to 122 F
storage	−40 C to 70 C	−40 F to 158 F
Relative humidity	0 % to 95 % non-condensing
