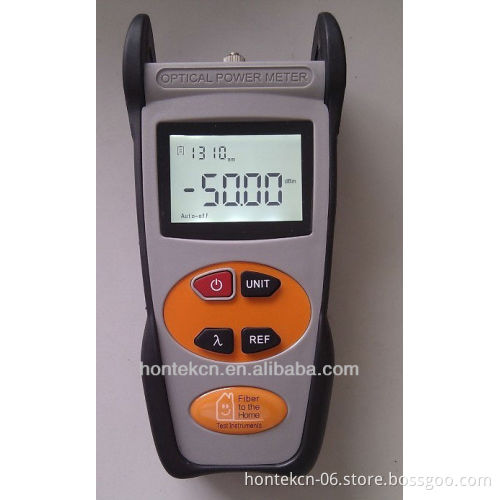

fiber optic power meter HSV-300P

fiber optic power meter HSV-300P      Description This optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.   Features l          Comfortable LCD display and optional backlight LCD display supports night operation; l          Power measurements in dBm or mw and insertion loss in dB; l          Reference power level storage(Ref Setting) l          Low battery consumption, more than 240 hours continual operation time with three 1.5V alkaline batteries; l          10 minutes Auto-off function can be activated or deactivated.   Applications Maintenance in Telecom Maintenance in CATV Fiber Optic Lab Testing Other Fiber Optic Measurements   Specifications

Wavelength(nm)	800~1700nm
Detector	InGaAs
Measurement  Range (dBm)	-70~+3	-50~+26
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01
Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
