EXFO IQS/FLS-2600B Tunable Laser Source 1510 to 1612dB

Specifications EXFO IQS/FLS-2600B Tunable Laser Source 1510 to 1612dB

100 nm tuning range

S/SSE > 75 dB

Inherent coherence control

                EXFO IQS/FLS-2600B Tunable Laser Source   1510 to 1612dB   Continuous and precise tuning over the C and L bands 100 nm tuning range
±15 pm uncertainty
Inherent coherence control
±0.005 dB power stability
S/SSE > 75 dB
Platform   Key Features and Benefits
1,Ideal for complete characterization (IL, ORL and PDL) of DWDM passive components.
2,Naturally low spontaneous emission enabling >75 dB dynamic range.
3,Tuning range of >100 nm covering both the C and L bands: wavelength tuning from 1510 nm to 1612 nm,
4,output power is 0 dBm over the 1515 nm to 1610 nm range.
5,Excellent wavelength accuracy and repeatability.
6,Elimination of connector-induced and other parasitic interference: no mode-hop related measurement         problems.

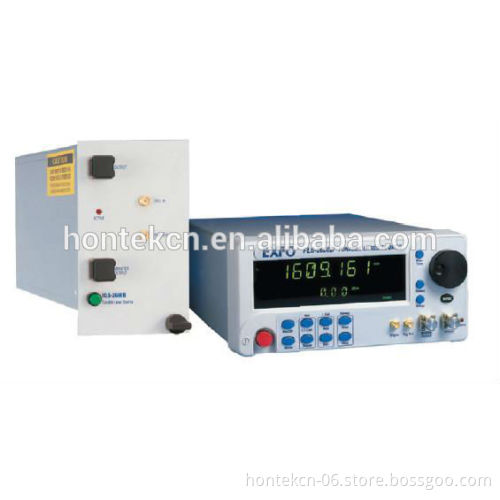

7,Available as a module or benchtop instrument, the 2600B is perfect for just about any application. Second Generation Specifications and Design   1.Greater Than 100 nmTuning Range This second-generation tunable erbium-doped fiber laser delivers exacting wavelength accuracy for long periods of use. Wavelength can now be tuned over a wide range—1510 nm to 1612 nm. Output power is greater than 0 dBm over the critical 1515 nm to 1610 nm range as shown on the right. 2.Designed AroundYour Testing Needs   The tunable laser source integrates both a monitor output port and a main output port. The monitor port, which is essentially a 5 % tap from the laser cavity, is useful for real-time wavelength monitoring in tests where optimum wavelength accuracy plays a major role. In addition, the main output is regulated in output power and can be attenuated over a 10 dB range.
    The triggering capability simplifies external synchronization with other instruments such as optical spectrum analyzers, power meters or simple oscilloscopes. All this in a two-slot plug-in module.
The modular IQS-2600B configuration operates within the IQS test platform.     Exceeding WDM Requirements Low   1. Low Spontaneous Noise Emission      Over the 1515 nm to 1610 nm range, the IQS-2600B and FLS-2600B provide more than 75 dB local noise suppression and more than 45 dB in signal-to-total-noise ratio, making them ideal for testing both stopband (notch) and passband filters.
      When combined with the source’s coherence properties,
they are the best tunable lasers on the market for characterizing passive DWDM components.
  2.Fast GPIB and Wavelength Tuning
        Maximize your efficiency by taking advantage of both fast tuning and effective remote control with the FLS-2600B stand-alone configuration. Use the GPIB access to complete a 50 pm step setup, including laser position confirmation,
in about 60 ms! You will have more time for measurements, while reducing time spent on wavelength tuning.
Exceeding WDM Requirements
Low ASE noise enables accurate isolation of DWDM components.
100 nm tuning in a small package.
1524 1523-90-80-70-60-50-40-30-20-100152515261527Power (dBm)Wavelength (nm)
Scan of 2600B signal with an OSA     3.Step-by-Step or Continuous Sweep
         Both IQS-2600B and FLS-2600B configurations support programmable sweep functions. Choose between continuous and step-by-step approaches, depending upon your specific application.
To obtain a loss profile, use continuous tuning at up to 50 nm/s in real time to perform optical alignments or maximize transmission during device processing. When coupled with one of EXFO’s fast power meters, the result is an efficient and compact alignment station.
Optimum wavelength accuracy takes precedence over test time or the number of acquisition points in some situations. For example, testing WDM components for PDL at ITU grid wavelengths typically requires a stop and measure approach in step-by-step mode. Whichever sweep mode is used, the laser is mode-hop free over the entire tuning range.
Input and output triggering for synchronization is available on both IQS and FLS units. This function eases integration of the tunable laser source with external measuring devices, including oscilloscopes, voltmeters, optical spectrum analyzers or power meters.   4.High-End Performance   1.Natural Coherence Control
   Are you looking for a product to solve your problems with coherence control and longitudinal mode hopping? This tunable laser source is the answer. Its linewidth is made up of several simultaneously present longitudinal modes (FWHM of less than 1.5 GHz at 1580 nm). The narrow, multimode structure creates high-frequency mode competition (>10 MHz), which is well above the measurement bandwidth required in most passive component characterization setups. Mode-hop related problems are completely eliminated.
   The inherent medium-coherence length (between 10 and 30 cm) eliminates connector-induced interference. You no longer have to worry about problems related to coherence control while in tuning or idle mode. There are no more interference-induced optical power fluctuations due to dirty connectors or other parasitic etalons.    2.Output Power Control The internal variable optical attenuator (VOA) provides a 10 dB attenuation range. We integrated a fast-response VOA to maintain constant output power under all circumstances. With a minimum step of 0.01 dB, impressive linearity and fast response time (500 ms for a 10 dB change), this VOA can replace an external unit for basic power adjustments such as leveling, sensitivity measurement and optimizing input power for EDFA testing applications.       Repeatability to Guarantee Accuracy
    Repeatability in wavelength and output power while tuning is a must for measuring WDM components. With a ±2.5 pm repeatability for wavelength, the IQS-2600B and FLS-2600B Tunable Laser Sources are among the best products available today. The rugged design and precision-encoded DC motor ensures that the source will deliver consistent results, test after test, pass after pass.           Specifications    GENERAL SPECIFICATIONS Output fiber type SMF-28
Operating temperature 10 °C to 40 °C (50 °F to 104 °F)
Storage temperature —10 °C to 50 °C (14 °F to 122 °F)
Dimensions (H x W x D)
IQS 125 mm x 74 mm x 282 mm (4 15/16 in x 2 15/16 in x 11 1/8 in)
FLS 117 mm x 222 mm x 333 mm (4 5/8 in x 8 3/4 in x 13 3/8 in)
Weight 1.4 kg (3.1 lb) 3.4 kg (7.4 lb)
Instruments Drivers
LabVIEW™ drivers and SCPI commands
Remote Control
With FLS-2600B: GPIB (IEEE-488.1, IEEE-488.2) and RS-232.
With IQS-500 or IQS-600: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232.
Standard Accessories
User Guide, Certificate of Compliance and AC power cord
SAFETY
CLASS 1 LASER PRODUCT
21 CFR 1040.10 and IEC 60825-1:2007      Inquire us! we will provide more detail product information,professional suggestion according to your situation!!! Anita Shenzhen Hontek Co., Ltd. Web: www.hontek.net Tel:0086-0755-36934393   Our main products as below:   1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-60S/60R); Fitel S178A; HSV-6000 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275) 3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E,S332E. 5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.
