OTDR HSV-610 Equal to EXFO MAX-710B,JDSU SMARTOTDR 100A/YOKOGAWA AQ1200 Optic OTDR

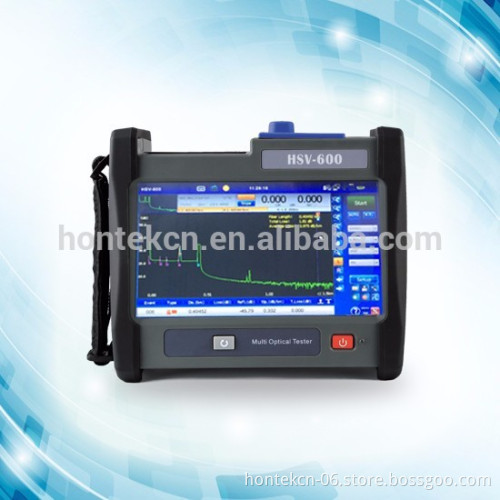

OTDR HSV-610 Equal to EXFO MAX-710B,JDSU SMARTOTDR 100A/YOKOGAWA AQ1200 Optic OTDR     Product Description OTDR, Touch Screen,HSV-600 OTDR Equal to EXFO MAX-710B,MAX-715B,JDSU MTS-2000 Fiber Optic OTDR   HSV-700 series is a new generation handheld OTDR, which launched by Hong Kong Honserv Ltd according to the tablet inspired design. HSV-700 series is idea for short and middle range fiber testing. It has excellent optical performance that can make sure the test precision; it also has optional functions like VFL, power meter, fiber interface detection.   Product introduction Key Feature * 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience) * Handy, lightweight, fully functional, tablet-inspired design * Excellent optical performance: Event dead zone: minimum 1m;                                Attenuation dead zone: minimum 5m * Dynamic range: 28dB-34dB * Resolution with the shortest distance:5 cm * 12-hour operating time * Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe   APPLICATIONS: * FTTH network construction, deployment, maintenance, certification * LAN fiber network construction, deployment, maintenance, certification * Metro optical network construction, deployment, maintenance, certification

Model	HSV-610	HSV-620
wavelength(nm)	1310nm±20nm;1550nm±20nm;1625nm±20nm
Dynamic range(dB)	30/28	34/32/31
Event dead zone(m)	2	1
Attenuation dead zone(m)	10	5
Pulse width	5ns 10 ns 30 ns 50 ns 100 ns 200 ns 500 ns 1µs 2µs 5µs 10µs 20µs
Distance range	100m 400m 1.5km 3km 6km 12km 25km 50km 100km 200km 400km
Sampling resolution (m)	0.1~12.8	0.05~12.8
Sampling points	Maximum 64000
Group refractive index setting	1.30000~1.70000
Distance uncertainty(m)	±(0.75m+0.005%×distance + sampling resolution)
Linearity(dB)	0.05
Loss threshold(dB)	0.01dB
Loss resolution (dB)	0.001 dB
Reflector precision	±2 dB
Measurement time	5s~5min, real time
real-time refresh rate	4 times/s
LCD Display	7in (178mm),800×480 TFT outdoor-enhanced LCD,touch screen
Interfaces	USB2.0 x 1, USB power supply DC5V ±0.05V@500mA    RJ45 x 1, LAN, 10M/100M    Macro SD x 1, support maximum 64 GB
storage	1    1GB internal memory(support10000pcs OTDR curve)    8GB SD card(support 80000pcs OTDR curve)
battery	7.4V 5300mAh Li-ion battery pack, 39.22Wh    support maximum 12 hours of operation
power dissipation	<3W
Power supply	AC/DC adapter: input 100-240V 50~60Hz, output 12V 1.5A       total power: 18 W
Connector Interface	Interface: UPC (standard), APC (option)       Connector Interface: PC (standard), SC/ST/LC (options)    Connector Interface and adapters must be specified upon ordering
