Basic Info
Basic Info
Place of Origin: China (Mainland)
Product Description
Product Description

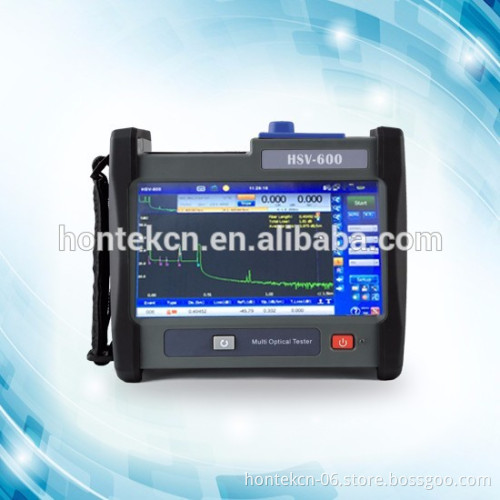

HSV-600 OTDR price          Contact information Jim zheng Skype:  honserv WhatsApp: +8613728095480             *  HSV-600 series are high performance and accessiblity OTDRs created by Hong Kong Honserv       Limitied with U.S. technology. *  7-inch, outdoor enhanced touch screen for you to get visual GUI.     Handy, lightweight, powerful, 12-hour atonomy----unprecedented testing experience is very         suitable for fiber optic test environment. *  HSV-600 series have outstanding optical performance, exquisite appearance, accurate and             stable internal parameters. *  It is the first choice of every fiber optic project company.

HSV-600  Specifications

Model

HSV-610

HSV-620

HSV-630

HSV-630A

HSV-640

Wavelength(nm)



1310/1550nm

1310/1550nm

1310/1550nm

1310/1550/1625nm

1310/1550nm

Wavelength Accuracy (nm)

                  ± 20 nm

Dynamic (dB)

30/28dB

34/32dB

37/35dB

37/35/35dB

40/38dB

Event Dead Zone (m)

1.5

1

0.8

0.8

0.8

Atten. Dead Zone (m)

6

5

4

4

4

Pulse width(ns)

5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1µs, 2µs, 5µs, 10µs, 20µs

Distance range (km)

100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km

Distance Accuracy (m)

0.1(HSV810/HSV820),0.5(HSV830/HSV840/HSV850)

Sampling Points

128000

256000

Distance Accuracy (m)

±(0.75m+0.005% x distance + sampling resolution)

±(0.75m+0.001% x distance + sampling resolution)

Power meter

                                                Calibrated Wavelength:1310nm/1550nm

working wavelength:850nm/980nm/1300nm/1310nm/1490nm/1610nm

Dynamic:-70dB~+10dB,±0,17dB accuracy

Display

 7 in (178 mm) outdoor-enhanced touchscreen, 800 x 480 TFT

Interfaces

Two USB 2.0 ports

 RJ-45x1, LAN ,10/100 Mbit/s,Macro SDx1

Storage

 8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces)

Battery Life

7.4 v,5300mAh lithium battery pack,39.22Wh supports 8 hrs, continuous (at max charge)

Power supply

 Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz,  DC out 12V,1.5A

Applicable environment

Operating temperature range:-10℃—+50℃

Relative humidity:-40℃—+70℃

Dimensions (WxHxD)

                               196*172*72mm

Weight(including battery)

                                  <1.5kg

Language

Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic)

              Shipment             Our main products 1. FUSION SPLICER: COMWAY C10/C8; Sumitomo (T-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A; INNO IFS 10 2.OTDR: EXFO (FTB-1/ftb-1v2/FTB-2pro/ FTB-200/FTB-500); JDSU (Smart/ MTS-2000/4000/6000/8000); YOKOGAWA (AQ7280) 3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E, S332E. 5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu           Jim zheng Skype:  honserv WhatsApp: +8613728095480
