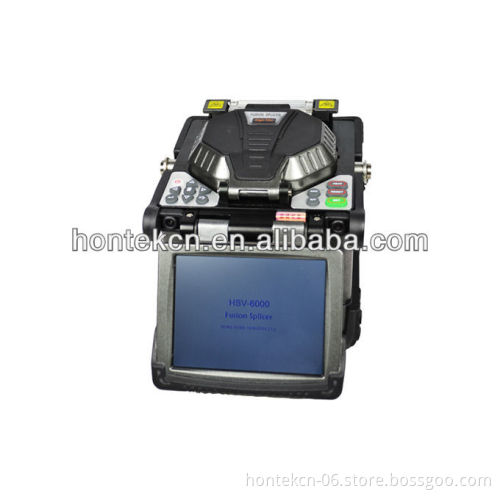

HSV-6000 fusion splicer(cheap price fusion splicer with Optical Fiber Cleaver)

Get Latest Price

Delivery Time:: 2 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

Specifications fusion splicer, hsv-6000 Splicing Machine,Fusion Splicer Fiber Optic Splice Closure Sumitomo Type-39 ,Fusion Splicer, Splicing

Fusion Splicer Price ,hsv Fusion Splicer,fusion splice machine,Fiber Optical Fusion Splicer , HSV-6000 fusion splicer(cheap price fusion splicer with Optical Fiber Cleaver) Features Digital fusion splicer with automatic focus function Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.6 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface

Specefications

Specefications

Model	HSV-6000
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length	10 ~16mm (Coating diameter<250);16mm(Coating diameter250~1000)
Fiber diameter	Cladding diameter:80 ~150 , Coating diameter:100 ~1000
Auto focusing	Available
Fiber aligning method	Core aligning, clad aligning, manual aligning
Average splice loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time	Typical 9 sec,with standard SM fiber
Heating time	Typical 36 sec
Applicable sleeves	60mm, 40mm and a series of micro sleeves
Tension test	2N(option)
Electrode life	5000
Battery capacity	Typical 400 cycles (splice and heat)
Monitor	5.1 inch TFT color monitor
Terminal	USB 1.1 and VGA , software upgrade via USB interface
Operating condition	0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50^oCC, respectively, Max. wind velocity of 15m/s
Splicing mode	Auto ,normal
Fiber cleaved angle threshold set	0.1 ~ 10.0 ^oC , 0.1^oCstep
Power supply	Li-battery 11.8V , AC100-240V DC12.6V/5.0A
Dimension	L169W152H155mm
weight	2.4kg 2.9kg(battery)

splicing machine hsv-6000 Include:Main body, AC power adapter, AC current cable, Standby electrode, Blower brush, Bottle wish siphon, Fiber bracket, User's manual, Luxury tote kit FUJIKURA FSM-60S in stock

BTR-08 Battery, DCC-14 Battery Charge Cord, CT-30A Cleaver, ADC-13 AC Adapter, ACC-14 AC Cord, Spare Electrodes (pair), Sheath Clamp, USB Cable, Splicer Carrying Strap, Quick Reference Guide, Video Instruction Manual, JP-05 Splice Sleeve Cooling Tray, Transit Case with Carrying Strap Sumitomo Type-81C Splicing Machine Type-39 is updated to Type-81C. 1.Sumitomo Single core Splicing machine Type-81C Fusion Splicer
2.11 languages
3.splicing in every enviroment

Features : Downsized by 43% from conventional model 2.1kg weight with battery Ultra fast splicing(7sec.) Ultra fast heating(28sec.) G.657 fiber auto splicing function IP52 rating and 76cm drop on 5 faces Automatic arc calibration Touch screen operation Universal clamp for 250µm,900µm tight and loose buffer fiber User selectable heater clamp operation Support bi-directional splicing operation Equipped with onboard training vedio Upgrades software via internet

Product name		TYPE-81C
Optical fiber requirements	Material	Silica glass
	Profile types	SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF
	Fiber diameter	Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1,000μm
	Applicable fiber or cable size	up to ø1,000μm	Drop cable (2.0×3.1mm) Indoor cable (2.0×2.0mm)
	Cleave length	5~16mm	10mm
Standard performance	Splice loss (typical) *1	SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
	Splicing cycle time (typical)	7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode)
	Heating cycle time (typical)	28sec.
	Splice & Heat cycles *2	Approx.200
	Fiber view & magnification	Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
Programs	Splicing programs	Max.300
	Heating programs	Max.100
Functions	Loss estimation	Provided
	Splice image capture/ Splice data storage	64 images/10,000 splice data
	Proof test	1.96N (200gf)
	Attenuation splicing	0.1dB to 15dB in 0.1dB increments
	Universal clamps for 250μm, 900μm tight & loose buffer fiber	Provided
	Reversible coating clamps	Provided
	Dual automatic independent heaters	Provided (US patent 7,412,146)
	User-selectable heater clamp operation	Provided
	Onboard user training video	Provided
	Automatic arc calibration	Automatically compensates for environmental condition changes
	Arc test	Provided
	Display of remaining Splice & Heat cycles	Provided (Battery mode)
	Remote interactive maintenance	Provided
Size/Weight	Size	120(W)×154(D)×130(H)mm (without anti-shock rubber)
	Weight	1.8kg (without battery), 2.1kg (with battery)
	Monitor	4.1" touch screen color LCD display
Terminals	DC output	DC12V (for JR-6)
	USB port	USB 2.0 (mini-Btype)
	Storage media	SD/SDHC memory card
Power supply	AC input	100~240V, 50/60Hz (ADC-1430)
	DC input	10~15V
	Battery module	Li-ion 11.1V, 4,600mAh (BU-11)
Operating condition	Altitude:0~6,000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s
Storage condition	Temperature: -40~+80°C, Humidity: 0~95% (non-condensing), Battery: -20~+30°C (long term)
Electrode life	3,000 arc discharges *3

*1:When the fibers used are identical to Sumitomo's fibers. *2:Splice & Heat cycles may vary depending on the battery status and the operating environment. *3:Electrode life may vary depending on the operating environment. Environmental Durability*

Shock resistance	Drop from 76cm on 5 faces (excluding top face)
Water resistance	Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º)

Dust resistance	Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below)

*Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage. Accessories: Stripper: Sumitomo original stripper
