DVP-750FTTH fusion splicer/DVP 750 Fusion Splicer/DVP-750 splicing machine

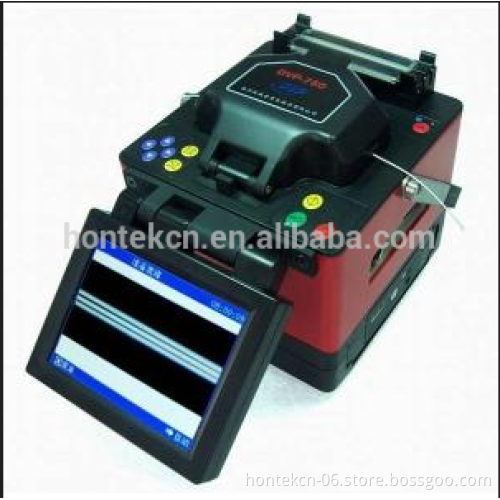

DVP-750FTTH fusion splicer/DVP 750 Fusion Splicer DVP-750 splicing machine   Contact information Mobile: 0086-13823128817 Tel:+86-755-36934393  Fax: 0086-755-33503470 Website:  www.honserv.com.hk   Skype: kitty.hsv     Descrpition The DVP-750 is used in various working conditions for field fiber splicing and can splice any type of fiber optic cables. The device is supplied with a kit of miscellaneous tools and accessories. Due to the long battery life and both side operation option, the Fusion Splicer DVP-750 keeps operating even in the toughest environments. This offer provides superior quality at an affordable price. Features High-definition LCD display PAS Technology Core or Cladding alignment  Double Heates, 30 sec. Tube-heat time 3 Magnification Modes, max. 360 Magnification 4 Display modes, Fiber core visible 8 sec. splice time Lithium battery Max. wind velocity of 15m/s Splicing method:Auto, Manual Store 8000 groups of splice results USB interface Specifications

Applicable fibers	SM, MM, NZ-DS(G655), EDF and others
Average splice loss	0.02dB(SM),0.01dB(MM). 0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm and other series micro protection sleeves
Splicing program	80 groups
Language	English, Chinese, Korean, Russian, Spanish , French, German, Portuguese and others
Environment conditions	-25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment	-40~ +80°C (temperature) , 0~95%RH (humidity)
Power supply	AC adaptor:85~260V input voltage Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat
Dimensions	140(D)×150(W)×160(H)mm
Weight	2.8kg

 Package Contents DVP-750 Fusion Splicer DVP-750-01 Rechargable Li-battery pack DVP-750-02 AC adaptor DVP-750-03 AC power cord DVP-750-04 Battery charger DVP-750-05 Spare electrodes DVP-750-06 Instruction manual (English) DVP-750-07 Heavy-duty carrying case DVP-750-08 Cooling salver DVP-750-09 Charger cord DVP-750-10High precision cleaver (tool life:18 000 cleave operations) DVP-750-11 Clauss CFS-2 stripper   Related product:
