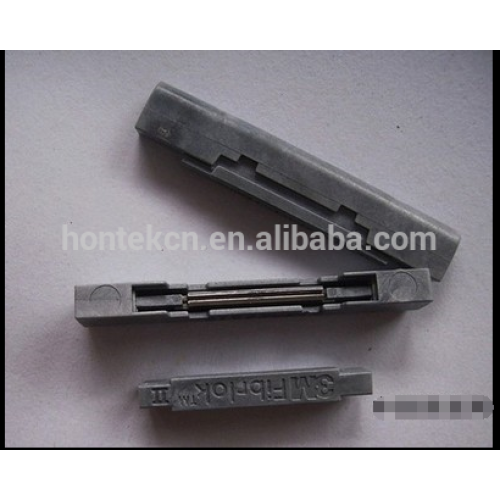

Splicer for Fiber Connection, Fast Connector, and Toolkit for FTTH construction

  Splicer for Fiber Connection, Fast Connector, and Toolkit for FTTH construction     Product Description   * Single mode and Multimode * Zirconia sleeves or Phosphor bronze sleeves * NTT standard compatible * Available without flanges or with flange for duplex, saving panel space * SC2 8Port high density for patch panel mount applications * Meet JIS5974 and bellcore GR-326 standard * Compliant with IEC874-14 & IEC874-19 * All parts compliant with ROHS

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

                                Application: * Telecommunication  * CATV * LAN & WAN * Network * Broadband * FTTH     Our Services
