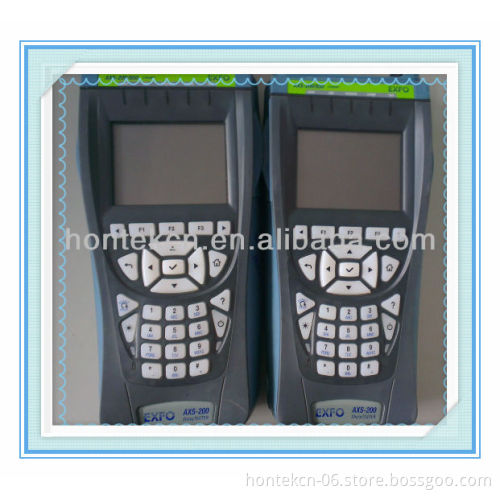

axs-200/axs-850 Ethernet Test Kit/ Ethernet 10/100/1000 Electrical and GigE Optical Test Kit

Specifications axs-200/axs-850 Ethernet Test Kit/ Ethernet 10/100/1000 Electrical and GigE Optical Test Kit

in stock!

brand new!

axs-200/axs-850 Ethernet Test Kit/ Ethernet 10/100/1000 Electrical and GigE Optical Test Kit

Model
AXS-850	Single port Ethernet Electrical Test Module 1x 10/100 Base-T Electrical interface Including: BERT, RFC 2544 & IP connectivity testing up to Layer 4
AXS-850-1	Single port Ethernet Electrical Optical Test Module 1x 10/100/1000 Base-T Electrical interface 1x GigE optical interface Including: BERT, RFC 2544 & IP connectivity testing up to Layer 4 MUST order one(1) FTB- 859x SFP. (on a separate line item).
Ethernet Software options
Options	Description
100optical	Enables 100M optical interface on the AXS-850 / AXS-850-1 Includes: Software key. MUST order one(1) FTB- 8591x SFP. (on a separate line item).
Cable_Test	Enables the capability to test Category 5 cables or greater. Includes: Wire Map test with Propagation Delay,              Skew, Cable length & Distance to Fault measurements In order to test a cable at 1000Base-T the unit must be equipped with the GigE software option key - Available for the AXS-850-1 or the AXS-850 + AXS-880
TRAFFIC GEN	Enables the capability to test different Ethernet or IP services to assure that proper QoS and Cos SLA's are met. Main testing features are the ability to generate and analyze Full line rate Throughput, Packet jitter, Real time Latency, Frame loss and Out of sequence packets.
Multi_Stream	Enables the capability to test up to 3 background streams to stress the Traffic Gen stream. Independent statistics are also available per background stream  In order to use the Multi stream option the unit must have the TRAFFIC GEN option before hand.
IPv6	Enables IPv6 testing. Capability to perform BERT, RFC2544, Traffic generation and analysis and Smart Loopback tests over IPv6
Software upgrades	Description
AXS-880	Software upgrade: AXS-850 to AXS-850-1 Enables support for:    1000Base-T electrical interface and GigE optical interface Includes: Software key. - Available for AXS-850 only MUST order one(1) FTB-859x SFP for optical Gigabit-E            on a separate line item.
GigE SFP Multirate Optical Transceiver
Model	Description
FTB-8590	SFP Mutirate Optical Transceiver module: Rates: GigE/FC/2FC 850 nm, LC, MMF, < 500 m reach
FTB-8591	SFP Mutirate Optical Transceiver module: Rates: GigE/FC/2FC 1310 nm, LC, 10km reach
FTB-8592	SFP Mutirate Optical Transceiver module: Rates: GigE/FC/2FC 1550 nm, LC, 90km reach
100M SFP Singlerate Optical Transceiver
Model	Description
FTB-85910	SFP Singlerate Optical Transceiver module: Rate: 100Base-FX 1310nm, MultiMode Fiber, LC connector; 2km reach
FTB-85911	SFP Singlerate Optical Transceiver module: Rate: 100Base-FX 1310nm, SingleMode Fiber, LC connector; 15km reach
1000M SFP Bi-Directional Optical Transceiver
Model	Description
FTB-8596	SFP Bi-Directional Optical Transceiver module: Rate: 1000BASE-BX10           1490TX / 1310RX 10KM NOTE: Should be sold as a pair.              FTB-8596 & FTB-8597 should be paired together.
FTB-8597	SFP Bi-Directional Optical Transceiver module: Rate: 1000BASE-BX10           1310TX / 1490RX 10KM NOTE: Should be sold as a pair.              FTB-8596 & FTB-8597 should be paired together.
FTB-8598	SFP Bi-Directional Optical Transceiver module: Rate: 1000BASE-BX40           1310TX / 1490/1550RX 40KM NOTE: Should be sold as a pair.              FTB-8598 & FTB-8599 should be paired together.
FTB-8599	SFP Bi-Directional Optical Transceiver module: Rate: 1000BASE-BX40           1550TX / 1310RX 40KM NOTE: Should be sold as a pair.              FTB-8598 & FTB-8599 should be paired together.
Carrying Cases	Description
GP-10-072	Semi-rigid carrying case for AXS-200, FTB-150, FTB-200
GP-10-074	Rigid carrying case for AXS-200
Accessories	Description
GP-2028	Anti-theft locking cable kit for AXS-200 / FTB-200 / FTB-500
GP-2034	Shoulder Strap Kit for AXS platforms Includes: Anchor plate, Clip and Neck Strap.
GP-2035 (A-E-I-S-U-J)	AC/DC adapter for AXS platforms Specify : A-North America, E-Europe, I-India, J-Japan,                S-Australia and New-Zealand, U-United-Kingdom
GP-2036	Extra battery door for AXS platforms
GP-2037	Extra Rechargeable Battery for AXS-6xx and AXS-8xx platforms
GP-2038 (A-C-E-I-J-S-U)	External battery charger for smart battery AXS-200 / FTB-500 Specify : A-North America, C-China, E-Europe, I-India, J-Japan,                S-Australia and New-Zealand, U-United-Kingdom
GP-2039	Hand Strap for AXS platforms
GP-2040	Protective cap for AXS platforms
GP-308	Car lighter booster for FTB-400 / FTB-200 / FTB-150 / AXS platforms
MANUAL	Instruction manual
