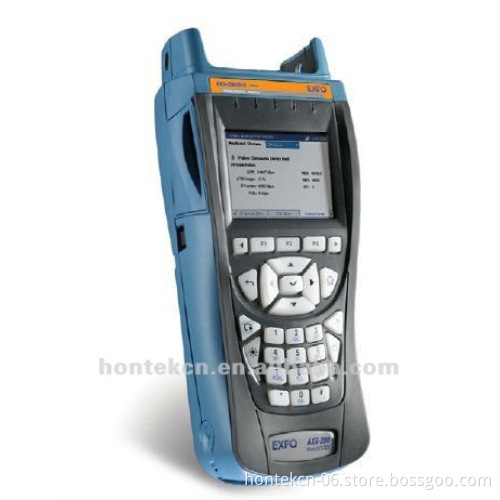

Handheld EXFO otdr AXS-200/635 COPPER TESTING EQUIPMENT

Model	Description
AXS-635-V2XA	ADSL2+/VDSL2 Triple Play Module (Annex A) Including: - ADSL1/2/2+ CPE modem emulation - Supports PPPoE, PPPoA, Routed (LLC, VC-MUX) - Supports PING, traceroute, HTTP and FTP speed tests Functionalities (up/downstream): - Actual , Maximum Bit Rate - SNR Margin, Attenuation, Power, Bits/Bin VDSL2 CPE modem emulation is optional (see options below)
AXS-635-V2XB	ADSL2+/VDSL2 Triple Play Module (Annex B) Including: - ADSL1/2/2+ CPE modem emulation - Supports PPPoE, PPPoA, Routed (LLC, VC-MUX) - Supports PING, traceroute, HTTP and FTP speed tests Functionalities (up/downstream): - Actual , Maximum Bit Rate - SNR Margin, Attenuation, Power, Bits/Bin VDSL2 CPE modem emulation is optional (see options below)

Copper
Software options	Description
VDSL2WB	Extended testing capability to 30 MHz
LoopMapper	Graphical loop map feature
ADSL2+ DRP	Video Stream & ADSL2+ Rate Analyzer

Software options	Description
VDSL2MOD	Adds VDSL2 CPE modem emulation based on Broadcom chipset
VoIP	Adds VoIP monitoring (thru-mode) analysis
IPTV	Adds IPTV monitoring (thru-mode) analysis and STB emulation
DATA	Add Data monitoring (thru-mode) analysis
TPP-BUNDLE	Adds IPTV, VoIP, and Data Analysis
MDI	Media Delivery Index (RFC 4445) Requires IPTV or TPP-Bundle option. The MDI option is not available for sale in the USA.
ADSL2+M	Adds ADSL2+ Annex M support

Accessories	Description
ACC-5COLR4MM	Test Cable: Banana to 4mm plugs/croc clips shrouded copper test leads
ACC-RJ4MM	Test Cable: RJ45 to 4mm plugs/croc clips & RJ11 DSL test lead
ACC-5COLR	Extra test Cable: 5 colored 4mm banana connectors with Telco clips
ACC-RJRJ	Test Cable: RJ45 to RJ45 Patch cable 2M
ACC-RJTC	Test Cable: RJ45 to Telco Clips / RJ11
ACC-STRP	Extra 3-lead Shorting strap for loop tests & RFL (extra)
ACC-DSLATNv1	DSL Multi-load attenuator – marked with circuit load in feet/meters
GP-10-072	Semi-rigid carrying case for AXS-200, FTB-150, FTB-200
GP-10-074	Rigid carrying case for AXS-200
GP-2028	Anti-theft locking cable kit for AXS-200 / FTB-200 / FTB-500
GP-2034	Strap kit for AXS-200 SharpTester (includes: anchor plate, clip and neck strap)
GP-2046 (A-E-I-S-U-J)	Extra AC/DC adapter for AXS-600 series Specify : A-North America, E-Europe, I-India, J-Japan, S-Australia and New-Zealand, U-United-Kingdom
GP-2036	Extra battery door for AXS-200 SharpTester
GP-2037	Extra Rechargeable Battery for AXS-6xx and AXS-8xx platforms
GP-2038 (A-C-E-I-J-S-U)	External battery charger for smart battery AXS-200 / FTB-500 Specify : A-North America, C-China, E-Europe, I-India, J-Japan, S-Australia and New-Zealand, U-United-Kingdom
GP-2039	Extra hand strap for AXS-200 SharpTester
GP-2040	Extra module protective cap for AXS-200 SharpTester
GP-308	Car lighter booster for FTB-400 / FTB-200 / FTB-150 / AXS-200
ACC-VEHCHRGR	12V vehicle adapter/charger for the AXS-200
ACC-SOFTCOVER	Form fitting, soft protective cover with shoulder strap for the AXS-600 series
ACC-SOFTGLOVE	Protective Glove for AXS-6xx platforms
ACC-HANGSTRAP	Shoulder Strap for AXS-6xx platforms
ACC-3COLR	2mm to telco clips copper, R/BK/G (Applies to AXS-610 and AXS-635)
ACC-2COLRRB4MM	2mm to shrouded 4mm barrels Red/Black
ACC-2COLRYB4MM	2mm to shrouded 4mm barrels Blue/Yellow
ACC-GRNLEAD4MM	2mm to shrouded 4mm barrel green earth lead
ACC-RFL-K	General Accessories blue, yellow test leads and RFL strap
MANUAL	Instruction manual
