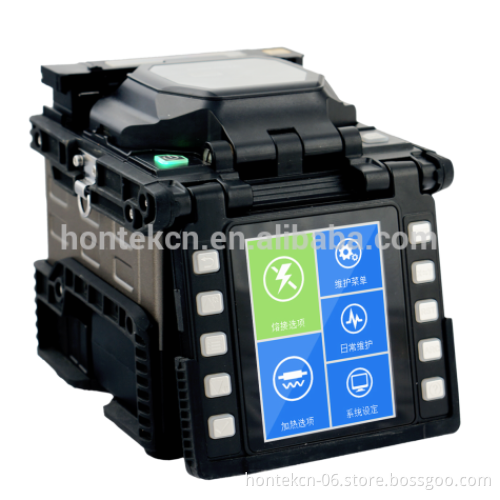

Core to core aligment COMWAY Fusion Splicer C10

Core to core aligment  COMWAY Fusion Splicer  C10            Contact information Tel:0086-755-36934393 Fax: 0086-755-33503470 Mobile:0086-13823128817 Skype:kitty.hsv
   Feature: *Core-to-Core alignment system *Splicing 6 sec., heating 25 sec. *Fast boot technology *More than 300 times splicing and heating Resist dust, rain, wind, and shock *Fiber type identify, AUTO splicing mode *Easy to change electrode and fiber holder *High speed USB, maintenance via the Internet    standard accessories:
1. C10 Splicer
2. High capacity battery
3. AC adapter
4. Extra electrode
5. Cooling tray
6. AC adapter cable 7. DC adapter cable
8. USB cable
9. Hand strap
10. Shoulder strap
11. Carrying case

Size & Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X&Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz
Battery module	7800mAh High capacity battery, more than 300 times splicing and heating
