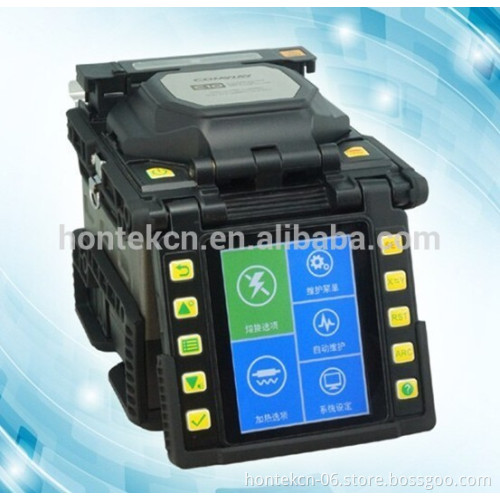

USA COMWAY C10 Fusion Splicer price

USA COMWAY C10  Fusion Splicer equal to Sumitomo type-81c /type-81c/type-q101 fusion splicer     Product Description   *Core to Core alignment system *  Most suitable design for FTTx, LAN, backbone, factories, long-haul installations
*  1 sec. bootup time, 6 sec. splicing time
* Enhanced Outdoor Color screen display
*  Long life battery with 7800mAh high capacity battery, more than 300 times splices and heats
* Shock resistance: 95cm drop on 5 faces
*  Easy to change electrodes and fiber holder
* Auto-start shrink sleeve oven feature
*  Easy maintenance - Easy electrode replacement /mirror free alignment System
* Fast and easy to use, no need to study.
* Easy Software upgrade via the internet
*  High speed USB Port. Support remote interactive maintenace.Using PC to connect to maintenance center
* Splicer is compatible with the Seikoh Giken and Diamond Spliceon- connector (SOC)
* CE, RoHS compliant

Size & Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X&Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz
Battery module	7800mAh High capacity battery, more than 300 times splicing and heating

      Packaging & Shipping  Standard Packing.  Includes: 1. C10 Main unit 2. High capacity battery 3. AC adapter 4. Extra electrodes 5. Cooling tray 6. AC adapter cable 7. DC adapter cable 8. USB cable 9. Hand strap 10. Shoulder strap 11. Hard Carrying case   We can ship to worldwide. Shipping cost around US$120-US$200 to worldwide from China vis UPS, FedEx, DHL and take 2-3 workingd days.   Payment terms   We support T/T, L/C, Cash, Western Union, MoneyGram, Paypal payment terms     Our Services   Our main products as below:
1. FUSION SPLICER: USA Comway C10; Sumitomo (Type-81C); JAPAN Fuji (FSM-80S/70S/70R); Fitel S178A.
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu     Contact information   Please contact Super Sales Engineer: Jim zheng WhatsApp / Viber: +8613728095480 Skype: honserv     Shenzhen Hontek Co., Ltd. is a professional distributor and product developer for telecom test equipments. We are the sole agency of Comway from California. USA. and also agent for Fujikura, Sumitomo fusion splicers, EXFO, JDSU, Yokogawa test equipments, Anritsu site master. At the same time, we have our own factory producing the fiber testers, patch cords, cables and fiber accessories.       Our customers spread all of the world due to our high quality products with competitive price. Moreover, we have some agents in many countries. In china market our customer include China Telecom, factories, Huawei, ZTE, BYD, Military and many engineering companies.
