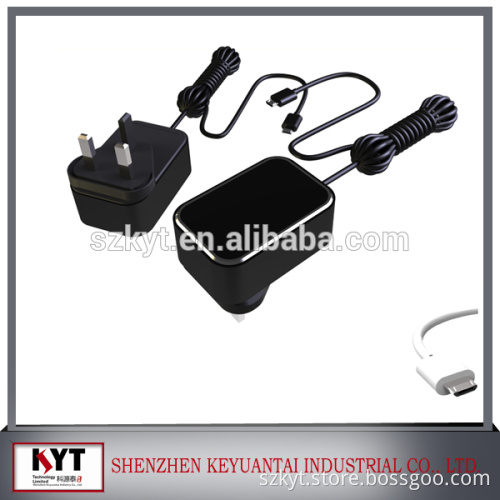

9V 3A Power Adapter for SMS/GPRS Printer

Specification for  9V 3A Power Adapter for SMS/GPRS Printer

1, Input: 100 to 240V AC, 50/60Hz

2, Output power: 27W series

3, Output voltage: 9V DC

4, Output current: 3A

5, Overload protection

6, Output over voltage protection

7, Short circuit protection

8, High efficiency   Mini 75 %

9, DC socket (optional)

10, CEC power supply standard

11, CE approved

12, No Load Power  Consumption  ≤ 0.3  W  at  Rated  Voltage

13, Ripple And Noise:    Output voltage 1%

14, High-Voltage  test  :   Primary to secondary: 3 kV 5 mA 60 S

15, Leakage   Current :   0.5 mA (max)  at input  240Vac

16, Operating Temperature Range      0--40°C

17, Storage Temperature Range:   -20  ---  85°C

18, High Humidity Operation :+ 40 °C  and 90 ~ 95% Humidity

19, Dimension : 75.0mm*36.5mm*53.0mm

20, Net weight:    About  180 gram per  unit.

21, Color :  Black / White.

22, The  power  adapter  should  have 50,000  hours  according  to MTBF.

23, Insulation Resistance:Primary to Secondary :  50 Meg. Ohms min. 500VDC

24, Delivery 15 Working days in punctual

Payment Details:

Payment Terms:

T/T or L/C

Minimum Order:

1,000 to 1,999 Pieces

  application:     DVD players,LCD and TFT TVs,MP4 players ,digital cameras,surveilanced charger ,network information,security equipment ,small home appliance,etc.     Real Factory support  1, High quality products 2, Reasonable price 3, Strict quality control system 4, Excellent R/D and sales team 5, Diversified options 6, 12 months warranty 7, International certificates   We supply:   AC/DC adapter, desk adapter, wall mount adapter, LED adapter(LED driver), security adapter, USB car charger, wired car charger, battery charger, power supply, switching power supply.
