ac dc 12v 1.25a/12v 2a/12v 3a adapter charger input 100~240v ac 50/60hz

ac dc 12v 1.25a/12v 2a/12v 3a adapter charger input 100~240v ac 50/60hz   Details:                                                                                          Item No.:KYT- 226
- Automatic overload protection fuse
- Input: DC100V-240V
- Output: DC 12V -- 1250mA -Application:Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router,Humidifier etc.   Specifications:

Input	100 to 240V AC, 50/60Hz
Output power	24W series
Output voltage	3 to 24V DC
Output current	10 to 4,000mA
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CEC power supply standard
	CE approved (EMC, TVD)
	KC
	ROHS
	FCC
Efficiency	Mini 75 %
Standard DC Connector	5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/3.5*1.35/6.3*3.0 with pin inside
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--40°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
Dimension	93.0*45.7*34MM
Net weight	About 170 gram per unit
MTBF	50,000 hours
Insulation Resistance:Primary to Secondary	50 Meg. Ohms min. 500VDC
Application	Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A	Qty: 50PCS/CTN
	MEA: L38cm*W27.5cm*H25.2cm
	Packing Material:PE bag+white box+carton
Packing B	Qty: 100PCS/CTN
	MEA: L47cm*W38cm*H25cm
	Packing Material:PE bag+Paper segment+carton

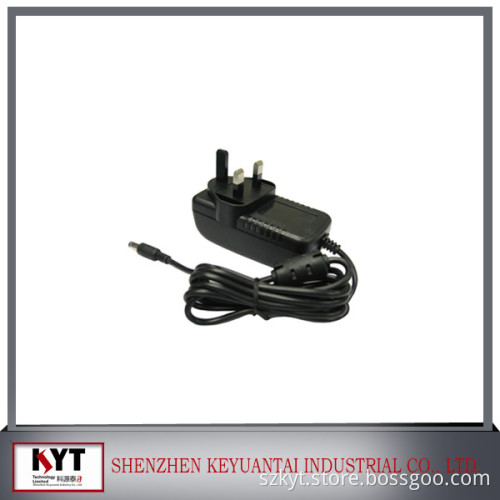

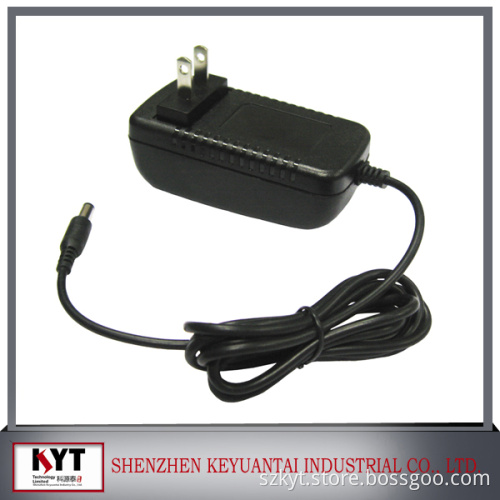

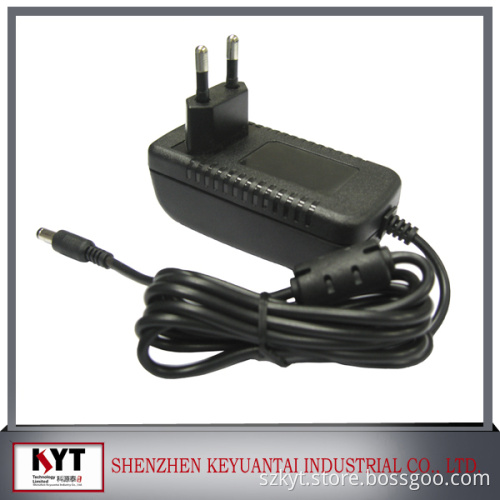

  Photo show:                                                                                Products:     Certificates:                     Shipping:                         We supply:                                                                                                 AC/DC adapter, desktop adapter, wall mount adapter, LED adapter(LED driver), security adapter, USB car charger, wired car charger, battery charger, power supply, switching power supply.                       Welcome inquiry ! ! !
