12V 2A 3A CCTV camea apdatper model adpater with CE ROHS FCC BS1363

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

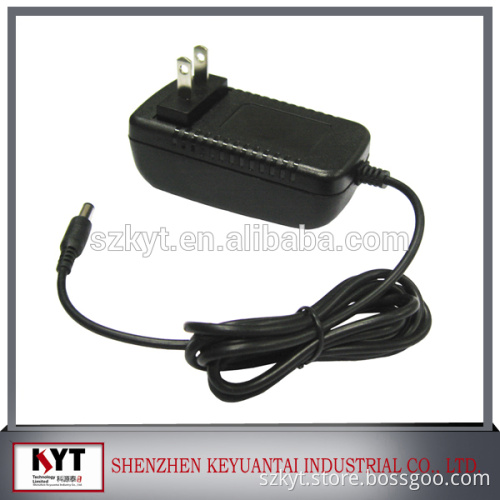

High Quality 12V 2A 3A CCTV camea apdatper model adpater with CE ROHS FCC BS1363
Specification

Input	100 to 240V AC, 50/60Hz
Output power	24W series
Output voltage	12V DC
Output current	2A
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CEC power supply standard
	CE approved (EMC, TVD)
	KC
	ROHS
	FCC
Efficiency	Mini 78 %
Standard DC Connector	5.52.5 / 5.52.1 /5.51.7 / 4.81.7 /4.01.7/3.51.35/6.3*3.0 with pin inside
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--40°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
Dimension	93.045.734MM
Net weight	About 170 gram per unit
MTBF	50,000 hours
Insulation Resistance:Primary to Secondary	50 Meg. Ohms min. 500VDC
Application	Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A	Qty: 50PCS/CTN
	MEA: L38cmW27.5cmH25.2cm
	Packing Material:PE bag+white box+carton
Packing B	Qty: 100PCS/CTN
	MEA: L47cmW38cmH25cm
	Packing Material:PE bag+Paper segment+carton
