2.4G 4 Zone Programmable Wireless RF Wifi RGBW Remote Led Controller 0-10V Receiver SR 1009FA

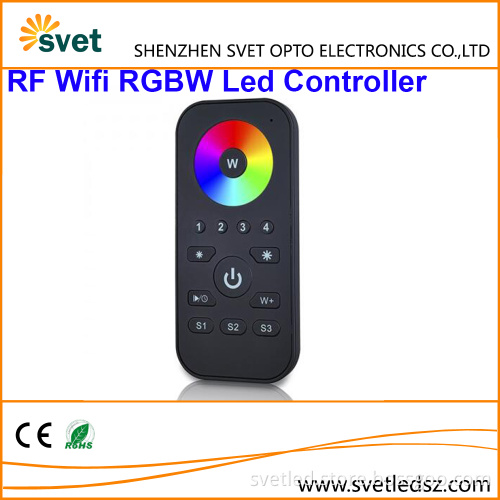

Product Features The LED controller SR-2819S is a remote RGBW controller with ultra sensitive glass touch color wheel to adjust color tone fast and accurately. Each controller can control up to 4 zones separately or synchronously with endless receivers in each zone. There are 10 built-in changing patterns with pause function when played. Scene saving function is available when you do not like the built-in ones, and 3 scenes can be saved for each zone. The LED RGBW controller can achieve millions of colors due to the independent brightness adjustment of each R, G, B, W channel. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features

1.User-friendly interface, easy and simple operation
2.Operation return function
3.Control up to 4 zones, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes
4.Set 3 scenes for each zone
5.Operation return function on this Remote WiFi LED dimmer
6.Preset 10 changing modes, with pause function
7.Synchronization function of pattern changes ensure consistent change forever
8.Receivers can work with RF-WIFI converter after installing software on IOS and Android system
9.Enable to dim brightness of each R, G, B, W channel, in order to mix millions colors

Technical Data
Model No.	SR-2819S
Operation Voltage	DC4.5V
Operation Frequency	434MHz/868MHz
Dimension	55*120*17mm
Remarks	RF Signal

Technical Data
Model No.	SR-1009FA
Input Voltage	12-36V DC
Output Current	4 CH * 5A
Output Power	240-720W
Output Type	Constant Voltage
Dimensions	46*178*18mm

Product Dimension Installation Diagram Receiver Wiring Diagram for Single Units Receiver Wiring Diagram for Multiple Units Company Profile   Shenzhen Svet Opto, specialized in manufacturing of led strip lights. We are in headlong pursuit of providing customer with high quality strip lights with competitive price. Our strip lights are specialized for North American and European high-end market. We have 300 workers with monthly output of 400,000 Meters Low Voltage Led Strips and 200,000 Meters High Voltage Strips. Our Strips has been exported to Europe, USA, Southeast Asia in large quantities every month. Highly recognized and welcome by customers for high quality and competitive price. We have full backup with engineer and designer to provide technical support and novel products.
