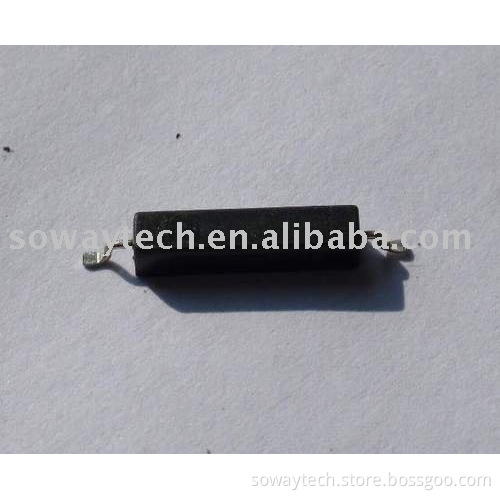

SMD REED SENSOR/REED SWITCH

Specifications Plastic reed switch/SMD REED SENSOR

1.RoHS compliant, ISO9001 certification.

2.High sensitivity,safety.

3.PCB mounting type.

Plastic reed switch/SMD REED SENSOR
: (1)Reed sensor is applicable for position determination of pneumatic and /or hydraulic cylinder and piston pump. It also can be used as limit switch. (2) When the magnetic object approaches, the reed closes and sends out switch signal through magnification.Compared with inductive sensor. it has the following strong points: can be installed in metal closely and side by side and detect through metal object. (3)Its detection distance subjects to the intensity of magnetic field of detected object. Reed sensor is not applicable in the occasion of severe vibration. (4)Choice of normal open or normal close.No standby power requirementCustomer defined sensitivity. Hermetically sealed, suit to tough environment and long life.  Technical Parameter:

Item	Unit	Nominal
Operate Range	AT	07-10
Switch Power(Max)	W	10
Switch Voltage(Max)	V	DC200   AC140
Switch Current(Max)	A	0.5
Carry Current(Max)	A	0.5
Contact Resistance(Max)	mOh	200
Insulation(Min)	Oh	106
Actuation time	ms	0.3
Release Time(Max)	ms	0.7
