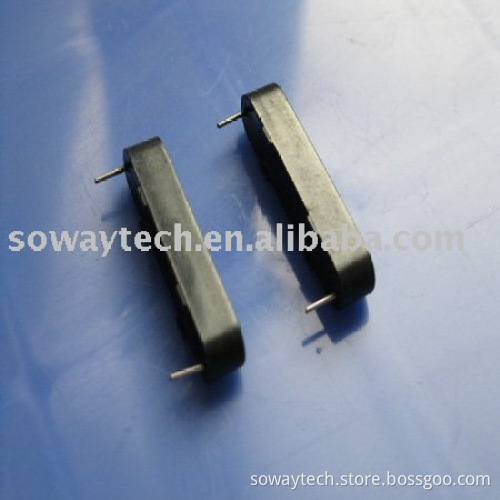

PCB Mount Change-over Moulded Reed Sensor

Specifications PCB mount reed sensor:

1.ISO9001,RoHS compliant.

2.Long life,safety,high sensitivity.

3.Easy to use, stable function switch.

PCB Mount Change-over Moulded Reed Switch, PCB encapsulation reed Sensor: (1) Reed sensor is applicable for position determination of pneumatic and /or hydraulic cylinder and piston pump. It also can be used as limit switch. (2) When the magnetic object approaches, the reed closes and sends out switch signal through magnification. Compared with inductive sensor. it has the following strong points: can be installed in metal closely and side by side and detect through metal object. (3) Its detection distance subjects to the intensity of magnetic field of detected object. Reed sensor is not applicable in the occasion of severe vibration. (4) No standby power requirement. Suit to tough environment and long life. Performance is steady and easy to used. Environment-friendly products. Techincal Datas:

Switched Power(max)	3 W
Ampere Turns	15-40
Switch Voltage(max)	DC 100V
Switched Current(max)	0.25A
Breakdown Voltage(min)	DC 200V
Carry Current(min)	1.0 A
Contanct Resisitance(max)	200 mmOh
Insulation Resistance(min)	109mOh
