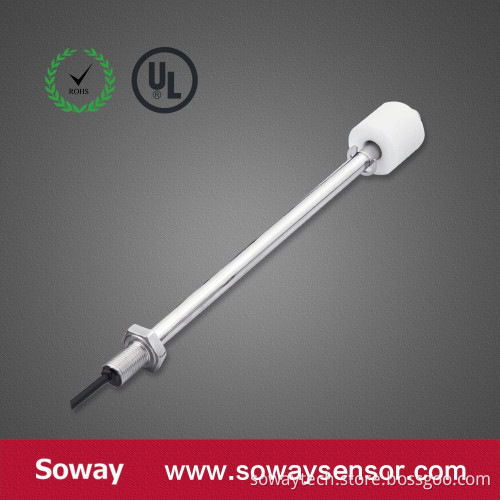

Soway F11D three points float level switch

Soway F11D three points float level switch   (1) Choice of normal open or normal close (2)No standby power requirement. (3)Customer can define activated distance, cable length and connector. (4)Hermetically sealed, suit to tough environment and long life.   Working Theory: When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.   The electronically characteristics of magnetic level switch: Max switch rating: 10W/70W  Max switch voltage: 200V/250V  Max switch current: 0.5A/1.0A  Max contact resistance: 100m Ohm  Min insulation resistance: 100M Ohm  Electrical life: one million times above Product Show Company Information Company Show: Certificates   Our Services Payment Method: Way of working: Why choose Soway:    1.Set up software and hardware independently(copyright certificate). 2.Quality control measures in every link. 3.Technical expertise.
