Linear position sensor for position measurement

Specifications 1.Linear position sensor for position measurement sensor

2.High pressure resistance

3.OEM&Customized

4.lowest price

                                      Linear position sensor for position measurement   Introduction:          LVDT is widely applied in Aerospace, Machinery, Construction, Textile, Railway way,Coal mine, Metallurgy, Plastic, Chemical industry and Academic research,which is used to measure the distance, vibration,thickness, expansion and so on.
        We also provide digital output.The integrated circuit is hermetically sealed in SUS 304 stainless steel sleeve, which can ensure the transducers works accurately and reliably in hostile environment such as damp and dust, corrosion, etc.     Specification: 1. High pressure resistance,withstand 35MPa.
2. 4-wire switching signal, 6-wire AC signal.
3. 2-wire: 4-20mA output; 3-wire:voltage output..
4. AC output,wide range motivated voltage (AC output)
5. Power supply 9 - 28V DC, power consumption <2W
6. Measuring range(2.5 - 35mm).
7. Linearity<1%.
8. Protection grade can reach IP67.

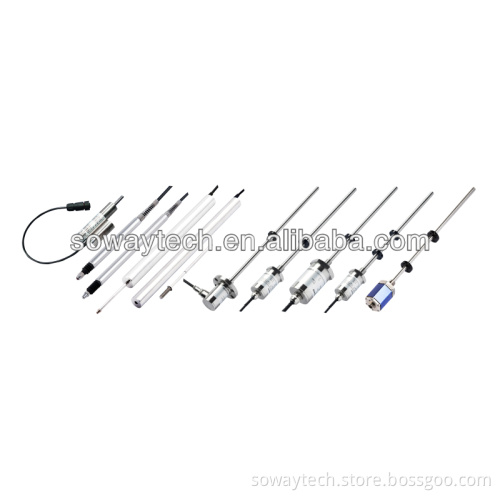

9 Highly integrated,small size.   Application of LVDT in proportional servo valves           Application of LVDT in cartridge valve:         Stardand exporting packing       More LVDT product pictures: ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------   Magnetostrictive   Introduction : The magnetostrictive position sensor bases on the magnetostrictive sensing principle that has high precision.Non-contact operation can ensures it works long and adapts well,High accuracy,high stability, high reliability and high repeatability .Variety of output signals,which include the current, voltage,SSI, Modbus, Profibus etc.And can meet any high industrial applications such as petroleum, chemical industry, steel and iron, port, machinery, food and so on. It is the best choice for high accuracy position control.   Features: Linear, Absolute Measurement
LEDs For Sensor Diagnostics
Non-Contact Sensing Technology
Non-Linearity Less Than 0.02% Repeatability Within 0.002% Variety of output signals:current,voltage,SSI,modbus   Application: Manufacturing
Process Mobile Hydraulic
Medical Power Generation   Specification:     Dimension:   For more product picture:   Factory show:
