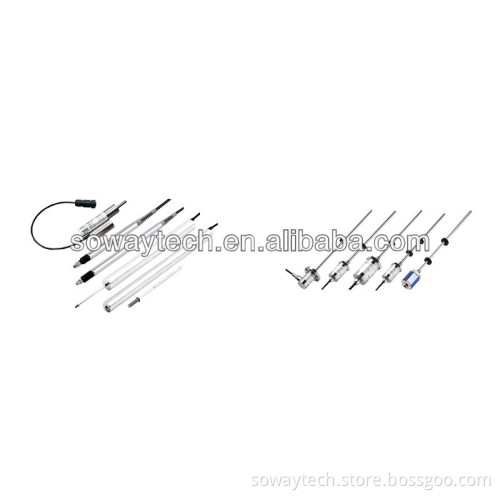

High precision linear position transducer for position detector

Specifications 1.For the two product,we can all customized

3 DC power supply

4.OEM

5.Best price

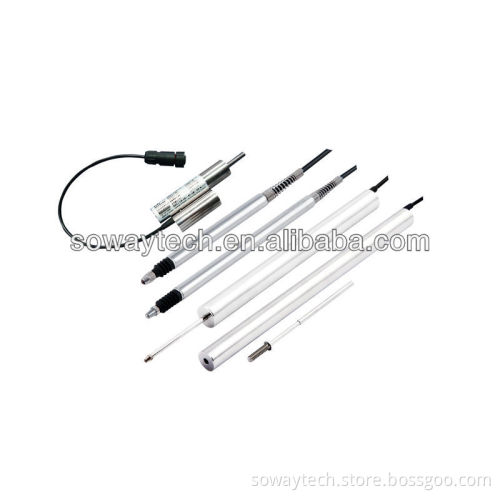

                 Linear position sensor use for position sensitive detector and displacement measurement                          For LVDT product introduction: Specification:                             Series of SDVG20 separate-core Specification:

Input  voltage	9~28V DC
Input Current	input current ≤12mA (Voltage output type)
	input current 4~20mA (Current output type)
Measuring range(mm)	2.5, 5, 10, 15, 25, 50, 100,250,500
Output signal	0~5V (9 ~28V DC input voltage)
	0 ~10V (15 ~28V DC input voltage)
	4 ~20mA (15 ~28V DC input voltage)
	RTU-RS485 Digital output (9 ~28V DC input voltage)
linearity error	±0.25%
Repetitive error	≤0.01% of FS
Resolution	≤0.01um(Max),Digital output is 16 bit
dynamic characteristic	250Hz(Max)
Temperature operating	-25~ +85°C
Temperature	Null point ≤0.01%/°C
coefficient	Sensitivity ≤0.025%/°C

                           Series of SDVB20 spring-loaded Specification:

Input Voltage	9 ~28V DC
Input Current	input current ≤12mA (Voltage output type)
	input current 4~20mA (current output type)
Measuring range (mm)	2.5, 5, 10, 15, 25, 50, 100
Output signal	0~5V (9 ~28V DC input voltage)
	0 ~10V (15 ~28V DC input voltage)
	4 ~20mA (15 ~28V DC input voltage)
	RTU-RS485 Digital output (9 ~28V DC input voltage)
linearity error	±0.25%
Repetitive error	≤0.01% of FS
Resolution	≤0.01um(Max),Digital output is 16 bit
dynamic characteristics	10Hz(Max)
Temperature, operating	-25°C ~ +85°C
Temperature coefficient	Null point ≤0.01%/°C
	Sensitivity ≤0.025%/°C

                                                                            SDVH8 series barrel type   Specification:

	AC Output
Input Voltage	3Vrms (1~3Vrms ) 5KHz(1~10KHz)	9 ~28V DC input voltagege	15 ~28V DC input voltage
Output signal	AC	0~5V	0~10V 4~20mA
		Digital output RS485 (RTU)
Measuring range (mm)	2 ,5 ,8
linearity error	Analog output:±0.25%,Digital output RS485(RTU):0.25%,0.1% optional
Repetitive error	≤1um
Resolution	≤0.01um(Max),Digital output is 16 bit
dynamic characteristics	10Hz(Max)
Temperature, operating	-10 ~ +65°C
Temperature coefficient	Null point ≤0.01%/°C
	Sensitivity ≤0.025%/°C

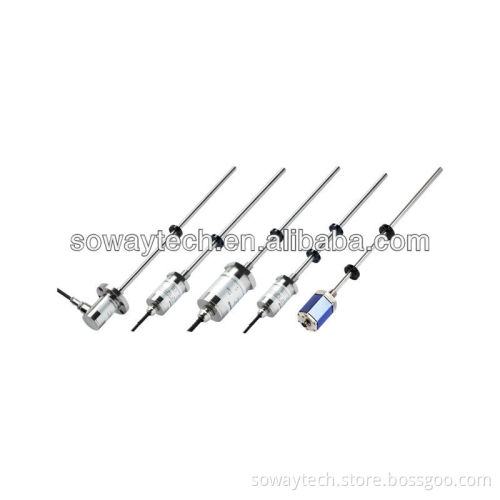

  Stardand exporting packing       More product pictures:  --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- For Magnetostrictive postion sensor  product introduction:       More product picture:     why choose us? Service:
Customers logo;Acceptable
Changing on material:Color,shape,construction:Acceptable
General inspection on fixing before packing
Third party inspection:Acceptable   Quality control:
Full check after every individual process finished
QC test again before production packed before shipping   Guarantee:
Customer's interestes can be fully guaranteed
Every defective product or quality problem(besides the damage during transportation can be replace in the next order)Any defective product or quality problem which cause customer's losses can be compensated in their next order   For more information,please contact our website    Factory show:
