SMD Type magnetic reed switch/reed sensor

Specifications Reed switch SMD

1.easy useage

2.RoHs certificate,safty

3.high quality reed sensor

4.beautifull appearance,good package

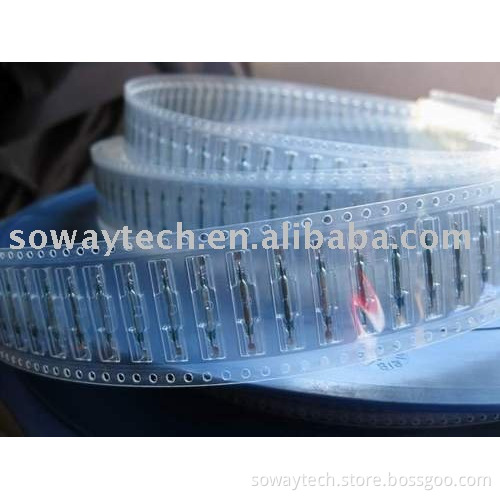

 SMD Type reed switch/PCB reed sensor (1) Quick response operation
(2) Low cost reed switch.
(3) Long life, excellent performance reed sensor.
(4) Immunity to mechanical effects.

Contact	1A
Pull-in    [AT]	10~50
Drop-out  [AT]	5min
Contact resisitance(Initial) (mΩ)	100max
Breakdown voltage[DVC]	150min
Insulation resistance (Ω)	109 min
Electrostatic capacitance(pF)	0.3max
Contact rateing [VA,W]	10
Maximum carry current [A]	1.0
Maximum switching voltage [V]	DC100/AC100
Maximum switching current [A]	DC0.5
Operate time [ms]	0.4max
Bounce time [ms]	0.3max
Release time [ms]	0.05max
Resonant frequency [Hz]	5000±400
Maximum operating frequency [Hz]	500
