IC card reader for mobile phones

Specifications 1. Support 30pin iPhone&iPad

2. Support Android/Windows mobile via USB2.0

3. IC card reader for mobile phones

IC card reader for mobile phones   Features:   1. Support for USB2.0(PC/Android/window mobile, smart phones) and 30pin(iPhone(1,3G,3GS,4G), iPad(1,2)) 2. Support for IOS (3.x and higher), Android (2.x and higher), OS X(10.5.6 and higher, Windows (XP and higher),Linux system(2.6 and higher) 3. Compliant with ISO7816, PC/SC, CCID specification, EMV2000 Level 1 specification, MFI specification 4. Reads from and writes to all ISO 7816-1, 2, 3, 4 microprocessor cards, T=0 and T=1 protocols 5. Support for full-parameter PPS protocol 6. Supporting access to ISO 7816-3 standard-sized IC cards and TF interface ISO 7816-4 microprocessor cards. 7. Built-in RF antenna (13.56 Mhz) (options)   Application: Smartcard reader can be applied to iPhone/iPad/iPod or PCs. It is applied to IC operation and high security application requiring electronic payment, network security, e-commerce and authentication etc. It is an ideal product for authentication, e-commerce, family bank, information security, identity and access control systems. Specifications:

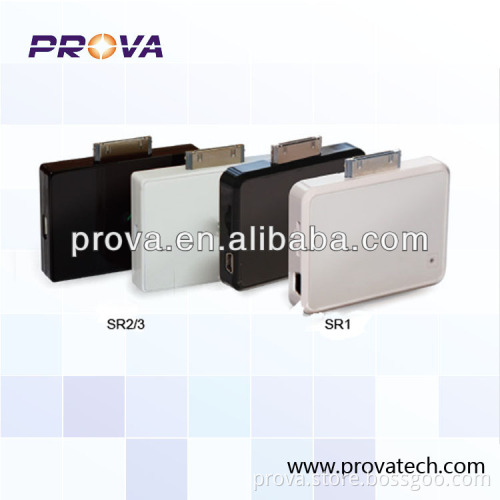

Model No.	SR1	SR2	SR3
Interface	Apple 30pin(iPhone(1,3G,3GS,4G,4GS),iPad(1,2,3),iPod Touch(3,4))
	Full speed mini-USB2.0 (PC/ Android /window mobile, smart phones)	Full speed Micro-USB2.0 (PC/ Android/ window mobile, smart phones)	Full speed Micro-USB2.0 (Only for battery Charge)
Supported Operating System	IOS(3.x and higher), OSX(10.5.6 and higher), Android 2.x and higher, Linux(2.6 and higher), windows CE (5.0 and higher), windows(XP and higher)		IOS(3.x and higher), OSX(10.5.6 and higher)
Communication Protocol	30PIN Private API
	USB CCID	USB CCID	USB for iPhone/iPad/ipod Charge
Power Supply Mode	iDock 3.3V
	USB 5V
Smart Card Interface Standards	ISO 7816-1/2/3/4
Protocols	T=0, T=1
Supported Card Types	ISO 7816 Class A, B and C , 5V, 3V and 1.8V Smart Cards
Card Interface	ISO 7816-1/2/3 Smartcard,Micro SD interface Smartcard	ISO 7816-1/2/3 Smartcard
Data Transfer Rate	9600-38400bps
Operating Temperature	0°C ~ 50 °C
Operating Humidity	<85% without Condensation
Storage Temperature	-20°C ~ 85 °C
Size(L*W*H does not contain 30PIN)	60.31*11.04*45.15 MM	58.98*9.83*41.25 MM
Standard and Certification	ISO-7816, EN 60950/IEC 60950, CE, FCC, RoHS Certification, EMV 2000 Level 1/2*, MFI Specification
