NFC thermal printer

Specifications Support Windows, Java, Android OS.

Bluetooth, USB and RS232

Portable printer/bluetooth printer

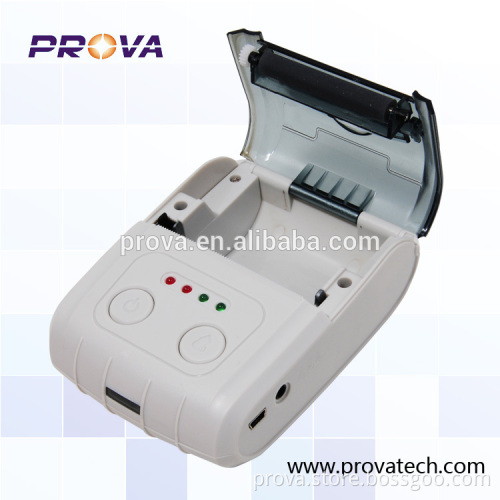

NFC thermal printer

  NFC thermal printer  / portable printer/thermal printer/bluetooth printer Features:   n  Support Windows, Java, Android OS. n  Bluetooth, USB and RS232 communication for option. n  Battery charge indicator, easy to know rest power. n  Higher print speed 90mm/sec. n  100km TPH Life. n  Low power consumption and large capacity Lithium battery. n  15 months warranty.

Specifications
Printing Spec	Print Method	direct thermal line
	Print Speed	100mm/s
	Continuous work time	100m~200m (under 12.5% print density)
	Resolution	203dpi (8dot/mm),384dot/line
	Effective Print Width	48mm
	Character per line	32
	Paper feeding flow place	0.125mm
	chinese character	24x24 dot matrix,16X16dot matrix and 12X12dot matrix
	other character	5X7dot matrix ASCII 96; 6x8dot matrix ASCII 352
Control System	interface	RS232 or USB/Bluetooth or TTL
	printer buffer memory	8K~20K
	command system	ESC/P printing command,and compatible with IBM/EPSON ESC/P
	printing driver	win2000/NT/XP/7/CE, android
Test Method	battery detection	YES
	buffer alarm	YES
	lack of paper test	YES
Power	battery	1200mAh,7.4V Li-battery, over 1000 rechargeable cycle
	rechargeable time	1.5 hours
Reliability	print head life	50Km
Printing Paper	paper type	thermal paper
	paper width	58mm
	paper roll outer diameter	33mm
	paper cutting	tear down (toothed)
NFC function         (optional)	communication distance	10mm
	carrier frequency (wireless port)	13.56Mhz
	data transfer rate	211.875kbps (wireless) ~1Mkbps ( wire)
	communication system	complied with ISO/IEC18092 (212kbps Passive Communication mode)
Physical feature	operation environment	0~50°C/10~80%RH
	storage environment	minus20 ~60°C/10~90RH
	weight	200g (including battery)
	dimension (mm)	110X85x45 (LxWxH)
