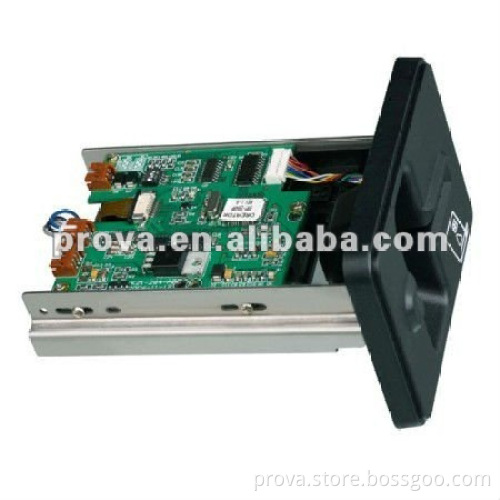

Ic/magnetic card reader/writer CRT-284

Specifications 1.Ic/magnetic card reader/writer CRT-284

2.RS232 and USB interfaces at option

3. EMV Certified

   Feature:   1.IC card reader/writer, Magnetic card reader only
2.SAM slot option, magnetic shutter option
3.Long life, high reliability
4.Insert& eject from both sides
5.TTL/RS-232 Interface
6.Compact, light, robust     Application:
Self-service terminal
Electronic purse
Vending machine
POS
Adding value machine
Multi-media information kiosk        card reader for game machine CRT-284 /  Manual Insertion IC Card Reader/Writer CRT-284  / Ic/magnetic card reader/writer CRT-284 Manual Insert Card Reader

Model	CRT-284
Features	EMV certified
	IC card read/write, Mag card read only,
	Compact and robust
	Cusomization Service
Application	Multimedia kiosk
	Access control system
	Vending machine
	Gaming machine
Specification
Card standard	IC card: ISO7816   Magnetic Card:ISO7810 ID-1,7811
Weight	Approx. 200g
Life	Magnetic head:300,000 passes min IC card Contact :300,000 cycles min
Communication	RS-232/TTL
Power supply	DC 5V +/-5%
Temperature/Humidity	Operation:0~50oC/0~90%RH(No condensing) Storage:-10~75oC/0~90%RH(No condensing)
