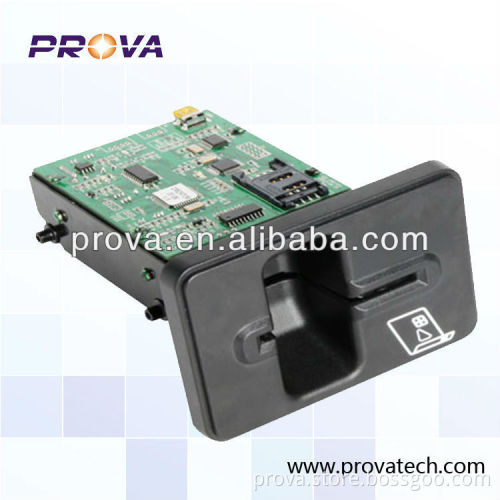

POS Vending Machine CRT-285

Specifications 1. POS Vending Machine CRT-285

2. Auto card locking function

3. Multiple bezels option

  Features:   1. Read magnetic stripe cards, read/write ISO standard RFID cards and IC cards 2. Electric lock and release function. Card could be retrieved once latched if you pull with  approximately over 25 N of force, and the card status is remained. 3. RS232/USB interface 4. Agile magnetic stripe reading method: Read when insert/withdraw; data uploaded passively /actively. 5. Life time: 500,000 times for each components 6. Customization service is available 7. Support ISO 15693 Card (Optional and customized)   Applications: ATM Multimedia kiosk Access control system Vending machine      PROVA POS Vending Machine CRT-285

Model	CRT-285
Features	EMV Certified and RoHS Compliance
	IC/RFID card read/write, Magnetic card read only
	Electric lock and release function
	SAM slot
	USB/ TTL /RS-232 Interface
	Metal/plastic bezel
Application	Multimedia kiosk
	Access control system
	Vending machine
Specification
Card standard	IC Card :ISO7816 Magnetic Card:ISO7810 ID-1,7811 RFID Card: ISO 14443-A(Type A/B)
Weight	Approx. 240g(Excluding accessory and package)
Error Rate	Magnetic card:<1/1,000(15~25°C,35~60%RH,perfect and standard card) IC card:     <1/1,000(15~25°C,35~60%RH,perfect and standard card) RFID card:   <1/10,000(15~25°C,35~60%RH,perfect and standard card)
Communication	RS-232/TTL /USB
Power supply	DC 5V +/-5%
Temperature/Humidity	Operation:0~50 oC /0~90%RH(No condensing) Storage: -25~80 oC /0~95%RH(No condensing) Normal Environment:15~25°C/35~60%
