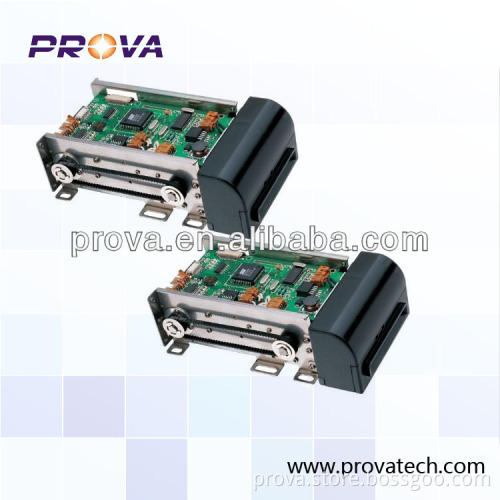

Kiosk motor card reader(RS232/USB/TTL) CRT-310

Specifications 1.Kiosk motor card reader(RS232/USB/TTL) CRT-310

2.IC/RF card read/write

3.With function of motor front/rear insert

            Feature:   1.IC/RF card reader/writer, Magnetic card reader only
2.SAM slot option, magnetic shutter option
3.Long life, high reliability
4.Insert& eject from both sides
5.TTL/RS-232 Interface
6.Compact, light, robust     Application:
Self-service terminal
Electronic purse
Vending machine
POS
Adding value machine
Multi-media information kiosk     Kiosk motor card reader(RS232/USB/TTL) CRT-310  Moto IC/RF Card Reader for Kiosk machine CRT-310

Model	CRT-310
Features	EMV certified
	IC/RFID card read/write, Mag card read only
	SAM slot option, magnetic shutter option
	Insert& eject from both sides
	TTL/RS-232 Interface
	Compact, light, robust
Application	ATM
	Information Kiosk
	Electronic purse
Specification
Card standard	IC Card :ISO7816 Magnetic Card:ISO7810 ID-1,7811 RFID Card:ISO 14443-A(Mifire one)
Weight	Approx. 410g
Life	Magnetic head:500,000 cycles min IC card Contact:300,000 cycles min Rubber wheel:500,000 cycles min Motor:500,000 cycles min
Communication	RS-232/TTL
Power supply	DC 12V +/-5%
Temperature/Humidity	Operation:0~50 oC /0~90%RH(No condensing) Storage: -10~75 oC /0~90%RH(No condensing)
