Specifications Read/ write up to triple tracks for Hi-co and Lo-co

Magnetic & ic chip card reader EMV PM2600-IC

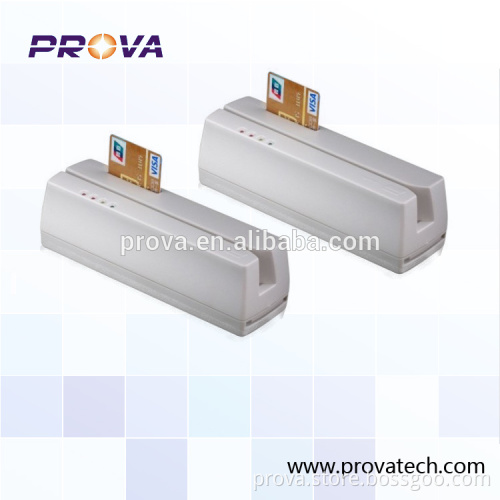

Magnetic & ic chip card reader/writer EMV / Magnetic & ic chip card reader EMV PM2600-IC     PM2600-IC Magnetic Stripe Reader/Writer provides reliable magnetic stripe reading/writing solution for bank business, retail, security and other related systems,  it offer user a card reader/writer solution that will complement many applications.   Features: Compact size manual swipe to read/write data with a single pass Read/ write magnetic stripe card or passbook in both ISO & IBM format Read/ write up to triple tracks (track 1&2 or track 2&3 or 1&2&3) for Hi-co and Lo-co IC card module at option Tri-color LED & beeper for power on/read/write operations   PIN pad port & two extra serial port expander available Well designed software/hardware and imported key components ensure the whole excellent performance Module structure technology applied to ensure high efficiency and reliability   Specifications:

Card standards	IBM, ISO, DIN, ANSI
Manual feeding speed	20~120mm/sec
Writing density	1st track   210 BPI (max 76 characters)
	2nd track  75 BPI/210 BPI (max 36/104 characters)
	3rd track  210 BPI (max 104 characters)
Interface	RS232,  2400/4800/9600 bps at option
Reliability	MTBF > 20000H, MTTR < 30 MIN
Magnetic head lifetime	Min. 500,000 swipes
Power supply	DC +9V  750mA  / +5V 320mA by host computer
Working conditions	0~40°C 15%~85% RH   non-condensing
Dimensions (L ´W ´H)	210mm ´60mm ´60mm
Cable length	2m
Weight	1.4Kg
Housing	Plastic PC, Ivory color

  ...
