USB check reader

Specifications 1: USB check reader

2:Secure/reliable reading and virtually 100% accurate

3:Integrated the functions both MICR or MSR

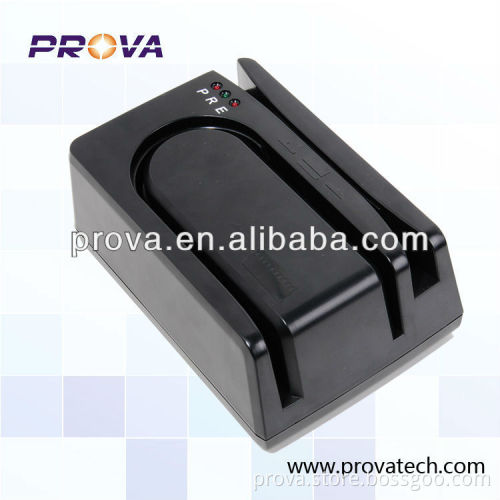

  USB check reader    The PM1250 is motorized Magnetic Ink Check Reader (MICR) that reads data from check with ISO-1004 Standard E13B (or CMC7) MICR font (MICR), also integrated with magnetic strip reader module (MSR) . It can be used in banks to quicken the disposal speed to check or other notes which encode in magnetic ink or magnetic card.   PM1250 MICR/MSR check reader can read check or other bill with magnetic ink characters automatically,and also can read magnetic card with manual swipe, so can be widely used in banks, marketplace, hotel etc. where financial transaction and information checking is required.   Specification

MICR standard	ISO1004 standard E13B,CMC7
MSR standard	ISO/IBM/ANSI/DIN format
Reading indication	Green/Red status LED for right/error reading
Multi interface	RS232, PS/2, USB 1.1 1200/9600 bps at option
Feeding speed	350mm/sec (±30mm/sec)
Reading speed	1.2sec/sheet (with 157mm sheet length)
Power supply	DC+12V
Head lifetime	500,000 cycles
Recognition accurate rate	98% for E13B&CMC7 &MSR
Environment	Temperature: 0-40 °C Humidity :15%~85% RH   non-condensing
Dimension(L*W*H)	172x120x70 mm
