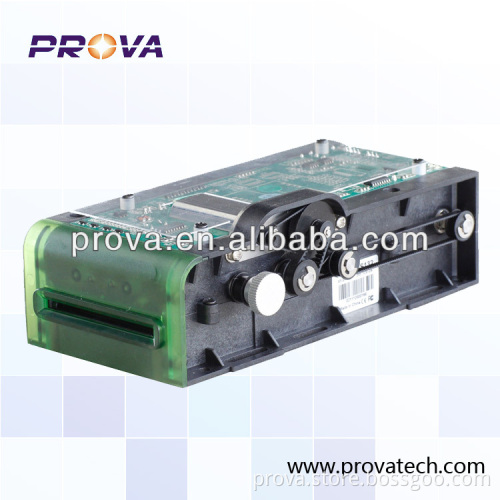

IC Card Reader ACT-A6

Specifications * Read mag/IC card

*Cheapest card reader

*IC Card Reader

      IC Card Reader ACT-A6 Motorised Card reader ACT-A6 is a gathering of years’ experience from technical development and market exploring in related industries. It is a fulfillment of different functions in one technical design. And its high reliability is guaranteed by its durable materials, stable structural and electrical design. Plus the LED design in its bezel, makes ACT-A6 a right choice of market.           3-2 Features ²  Anti-fishing function achieved by card’s trembling entry. ²  The dulgy bezel prevents the card from being fished. ²  The LED on the bezel helps to avoid the cards from being left in the reader. ²  The independent sensor design offers an easier maintenance of card reader. The transparant mirror on the sensor separates the dust and other obstacles from the sensor ²  The “dust prevent mechanical shutter” on the bezel raises the reader’s reliability. ²  The four pairs of rollers working as drive roller, better guarantee the reliability during transmission to prevent from card jam or card ejection error. ²  The adopted of “pure belting transmission” makes a smoother, stabler, quieter transmission. ²  The roller in front of the magnetic head enables card re-insertion and re-read, improve card’s reading rate. ²  Paris of rollers transmission can prevent abnormal card from inserting in. ²  The “self-balance magnetic head structure” makes the reader easy to maintain and enhance the reading stability. ²  The adopted of “high quality plastic” in the main body ensures the reading accuracy and the uniformity of the card reader.      Technical specification:

Contents	Specification
Card Type supported (for options)	Magnetic card ISO-7811(Customization accepted for non-standard card)
	Contact IC card ISO-7816
	Contactless IC card(RFID card) ISO-14443
Anti-fishing	A combination of “extruding bezel”&”trembling insertion” effieciently avoid cards being fished
Card insertion method	Magnetic signal check/Card width switch check
Card insertio mode	Trembling insertion/normal insertion for options
Card rejection mode	Front side reject with holding/front side reject without holding/rear side insert with holding/rear side insert without holding for options
Re-read function	Automatic card re-insertion and re-read function
Stub card	Automatic rejection of stub card and innormal card
communication	RS-232/USB
Power off ejection	EPS needed for power off auto-ejection,
Power supply	DC12V±5% 2A
Circuit protect	Auto protection on circuit for reversed polarity or overtension
Transmission	The movement of upper drive roller and lower driven roller take the transmission
Lifetime	Magnetic head≥800,000 pass, contact chip≥500,000 pass
Working condition	Temperature/humidity   -20°C--60°C/0-90% no-condensing
Storage condition	Temperature/humidity  -30°C--70°C/0-90% no-condensing
Net weight	About 390g
Package	245×137×93mm /unit
Installation	See attached product assembling drawing
