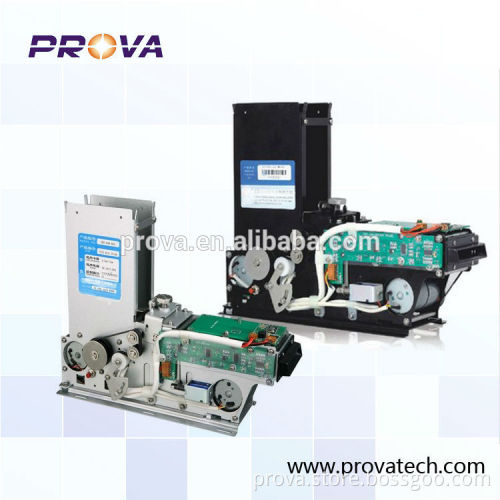

CRT-570 card issuing machine

Specifications 1.RFID card read/writer

2.Card dispense/capture/accept

3.RS232 interface

4.CRT-570 card issuing machine

  CRT-570 card issuing machine

Product Features:

• RF card read/write • Wheel rubbing against dual sim card design effective output • Easy adjusting of card thickness • Card pre-empty detection, card collection box capacity test • With error card capture function, controllable multi card stop position • Able to load the card bar code scanners • Extended stacket design makes card capacity of stacker flexible • Special design for protecting reader from foreign object • RoHs compliant • Patent   Patent NO.: (ZL200720121586.2)-Differential points card issuing device

Specification:

Card size	55 × 86mm
Card thickness	0.2 ~ 2.0mm
Card box capacity	180pcs / 0.76mm Standard Card (Maximum load capacity card 500PCS)
Load option	Short card stacker 60pcs / Long card stacker 170pcs / Features card stacker 300pcs
Card box capacity	38pcs ± 2pcs (0.76mm Standard Card)
Card volume alarm	7 ~ 50pcs ± 2pcs
Communication interface	RS-232
Power supply	DC 24V ± 10%(Card device) DC 5V ± 5%(RF card module)
RF card module	Operation:-10 ~ 75°C/0 ~ 90%RH (Storage) Storage:-25 ~ 80°C/0 ~ 95%RH (Storage)
Weight	About 2.5kg
