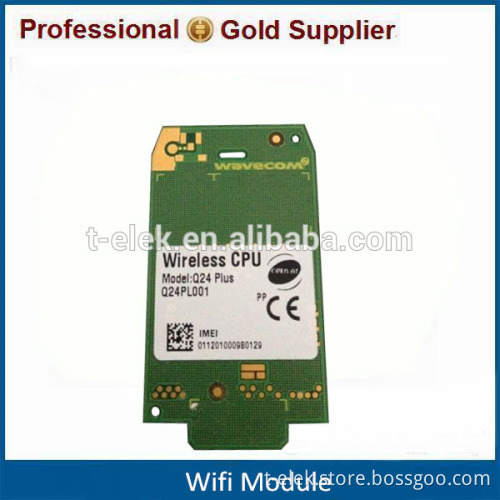

  Wavecom Q24plus Q24PL001 GSM GPRS module Product Description   Q24PL001 is a quad-band (850/900/1800/1900 MHz) GSM modem. It supports GPRS class 10 and TCP/IP protocol stack. RS232 is the main interface; besides there are audio interface and 2GPIO. The main advantage of this model is the function of downloading the user-defined software developed in the OpenAT environment (C++ programming language).
This function considerably extends modemfunctionality, and thereby, simplifies overall architecture of the system to be developed. Modem is controlled by a standard set of AT-commands and an embedded program. Q24PL001 is intended for use in telemechanic and telemetering systems, security and alarm systems, as well as in other systems in which wireless data transmission is required.

Frequency bands	850/900/1800/1900 MHz;
	GPRS class 10;
	TCP/IP stack;
Available network protocols	TCP, UDP, HTTP, FTP, SMTP,POP3;
	An open platform for embedded applications OpenAT on the C++;
Hardware	C++(core ARM7);
	Memory: 16 MB (RAM), 32 Mb (Flash);
Power supply	Timer restart function is realized;
	Supply voltage range: 9 V ... 30 V;
	Supply current less than:
	At 12 V supply voltage - 300 mA;
	At 24 V supply voltage - 150 mA;
Main parameters	GPRS class 10 up to 85.6 kbps;
	MS class B;
	SMS: MT, MO, CB, Text and PDU modes;
	CSD up to 14.4 kbps;
	USSD;
	Fax group 3: class 1;
	Voice communication:
	HR/FR/EFR/AMR speech coding;
	Hands-free based operations;
	Noise reduction function, echo suppression;
Interfaces	DB15 connector for connecting RS 232 data cable and audio, reset;
	SMA connector for GSM antenna connection;
	DB15 (RS232, audio interface, reset);
	Micro-Fit 4 (power supply, GPIO);
Physical	Aluminum housing;
	Dimension less than: 76 x53 x33 mm;

  Packaging & Shipping   Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
