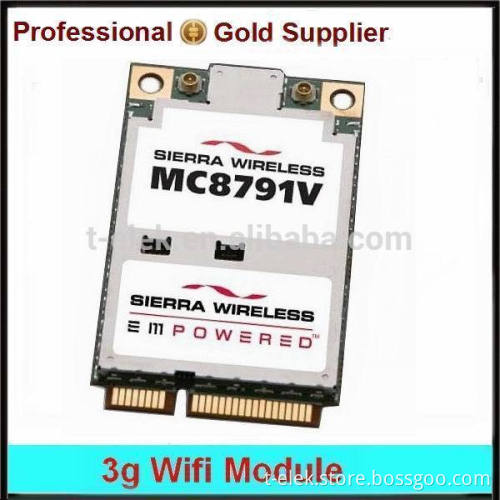

sierra wireless MC8791V cheap gprs module

Specifications cheap gprs module

DL/UL 7.2 Mbps/2.0Mbps

850/900/1800/1900 MHz

GSM/GPRS/EDGE

GPS/1575.42 MHz

  Product Description sierra wireless MC8791V cheap gprs module Features: Technology:
PCI Express Mini Card
MSM6290 Chipset
UMTS with HSPA Category 8
(7.2 Mbps downlink)
HSUPA Category 5 (2.0 Mbps uplink) &
Upgradeable to 5.76 Mbps
EDGE/GPRS MS Class 12
Receive equalizer with antenna
Diversity on 2100 MHz
USIM support
PC/SC interface
Qualcomm GpsOne® technology

antenna Connector:
50 Ohm compatible
U. FL RF connector
Specifications: Bands:
2100 MHz WCDMA
Power class 3 (+24dBm)
850/900 MHz GSM/GPRS/EDGE
GSM Power class 4/EDGE E2
1800/1900 MHz GSM/GPRS/EDGE
GSM Power Class 1/EDGE E2
GPS/1575.42 MHz
data services:
2100 MHz WCDMA: Downlink up to 7.2 Mbps Uplink up to 2.0 Mbps (upgradeable to 5.76 Mbps) 850/900/1800/1900 MHz GSM/GPRS/EDGE: Downlink up to 236 Kbps Uplink up to 236 Kbps
host Interface:
52-Pin Edge Connector
Pinout supports PCI-Express Mini Card
USB 2.0
Software configurable LED control
U-SIM SIM
Operating systems:
Windows® XP / Vista
Linux
Windows® CE
Proprietary OS
Power:
Input Voltage Range: 3.0 ~ 3.6 V
Low talk current
Low stand-by current
Additional functionality:
AT command interface
CnS command interface
Software Development Kit (SDK)
including Application Program
Interface (API)
Voice services:
PCM Audio
IS-127 & IS-733-A Vocoders:
13QCELP Vocoder
EVRC Vocoder
TTY/TDD Product show:   Product Description Packing : General packing or as customized package   Delivery time : About 2-10 days after receiving the deposit
