Option Icon322 3G HSUPA USB Modem

Specifications Option Icon322 3G HSUPA USB Modem

1.Easy to use

2.Compact and lightweight

3.Configured for worldwide

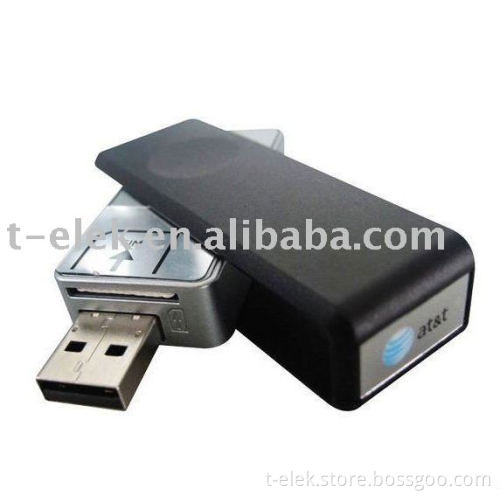

Option Icon322 3G HSUPA USB Modem     As well as being the smallest HSUPA USB device on the market (just 66 x 17 x 25 mm when closed), the iCON 322 is also the first Icera-based HSUPA USB device in the world. It features the latest, high-speed data access technologies both for HSUPA upload and HSDPA download, and enables virtually global usage in GPRS/EDGE networks.   The award-winning design of the iCON 322 houses the antenna in the swivel, thereby improving performance in poor coverage areas. The swivel also serves as the USB connector protection ‘cap’, while the connector itself is offset to provide easy access to adjacent USB ports.
Powering and Interfacing:
Powering is done through the USB interface
Multi-color status LED indicators built into swivel
Terminal Eguipment interfaces:
USB 2.0 High Speed interface, fully compatible with USB 1.1 interface
SIM card interface compliant with 3 GPP 31.101 and 31.102 supporting 1.8 and 3V UICCs
Drivers: Windows 2000 Pro, Personal and XP Pro / Home 32/64bit, Windows Vista 32/64bit, Mac OS X, Linux Software:
GlobeTrotter Connect for Windows and Mac.
Linux drivers available
Approvals and certifications
All applicable regulatory approvals (i.e. FCC, R&TTE, GCF), Operator and Infrastructure IOT
Microsoft WHQL certified drivers
Available accessories:
A lanyard and / or USB cable can be added
Voice features:No
Assisted/Standalone GPS:No
Environmental Operating Temperature: -10 to +55oC
RoHS compliant
Specifications:
HSUPA/HSDPA/UMTS Air Interface Multi-band FDD support
850, 1900 & 2100 band support
No Rx diversity
Equalization:
Power Class 3 (+24dBm)
HSUPA 1,46 Mbps: Category 3
HSDPA 1.8: Categories 1-4, 11 and 12
HSDPA 3.6: Categories 5 and 6
UMTS: 384 kbps operation in downlink, 384 kbps in uplink
Support UL and DL Compressed Modes
EDGE/GSM AIr Interface: 850/900/1800/1900 MHz
GSM Power Class 4 (2W) for 850/900 bands
GSM Power Class 1 (1W) for 1800/1900 bands
EDGE class E2 (+27 dBm in 850/900 bands, +26 dBm in 1800/1900 bands)
GPRS/EGPRS Class B Type 1MT
GPRS CS1-CS4; EGPRS MCS1-MCS9
3GPP ReI99 with selected ReI4 features
EDGE 8PSK class E2 (+27 dBm in 850/900 bands, +26dBm in 1800/1900 bands)
EDGE data throughput (peak): 247 Kbps
EDGE data throughput (average): 200Kbps uplink and 215 Kbps downlink   Size:
66 x 17 x 25 mm closed
Weight:
35g
Packaging Options:
Blister Packaging
