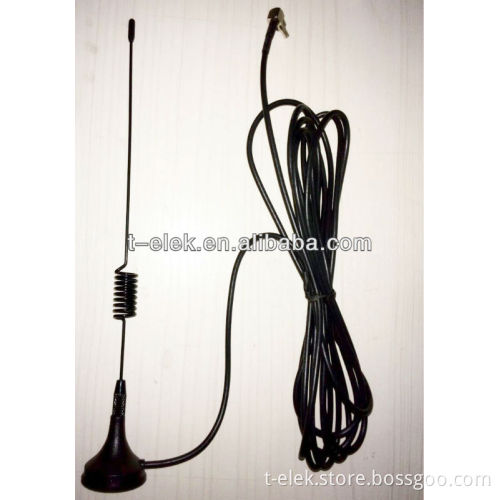

Antenna for huawei 3g modem CRC9 Antenna

     Antenna for huawei modem,CRC9 Antenna,huawei external antenna          Basic Feature   - Improve performance in low signal areas   - Desk stand   - To get more stable surfing, especially for indoor.   - Support Huawei E122, E156G, E160, E160E, E160G, E1612, E169, E176, E1762, E176G, E1820, E600, E612, E618, E620, E630, E660A, E800, UMG181, EMG1691 and others CRC9 connector         This antenna with CRC9 connector can work for Huawei   E156/E156G/E160/E169/E176G/E1762/E1820/E196E/E600/E612/E618/E620/E621/E630/E660/E660A/EC321/E881E /K4505 /K3520
ALL HUAWEI DEVICES WITH ANTENNA PORT
 GSM Antenna (5dbi)
Speciation data
Frequency Range(MHz) 824-894/1710-1990
Bandwidth(MHz) 90/280
VSWR ≤1.5
Gain (dBi) 5.15
Max Input power (W) 60
Input Impedance Ω 50
Polarization Type Vertical
Antenna Length(mm) 297±2
Cable Length(mm) 2500
Cable Type RG174
Connector Type  SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Housing colour Black
Storage Temperature  -45 to +75 Operating Temperature  -45 to+75
