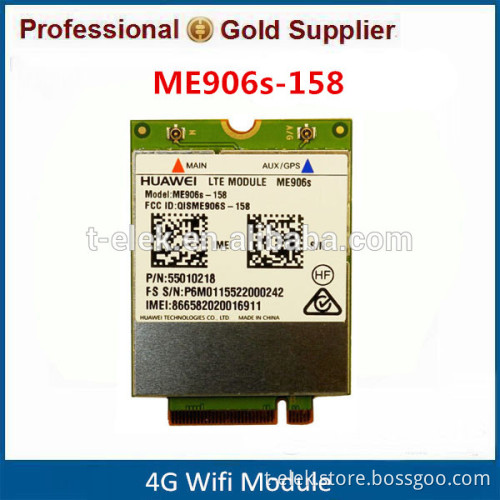

Huawei ME906s-158 M.2 interface LTE FDD module

                           Huawei ME906s-158 M.2 interface LTE FDD module
Product Description   ME906s-158 is a M.2 interface LTE module with Hisilicon Balong V711 chipset embedded, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28, Qual-band DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8 for Europe and APAC network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Europe carrier certifications, enabling easier and more flexible design and integration into end devices. ME906s-158 is the ideal choice for Notebook, Tablet and Ultrabook etc.


Form Factor	75-pin M.2/NGFF
Bands	LTE FDD:B1,B2,B3,B5,B7,B8,B20,B28 DC-HSPA+/HSPA+/HSPA/WCDMA:B1,B2,B5,B8 EDGE/ GPRS/GSM 1900/1800/900/850 MHz
Data Transfer Rate	EDGE: DL 236.8 kbps/UL 236.8 kbps WCDMA PS: DL 384 kbps/UL 384 kbps HSPA+: DL 21.6 Mbps/UL 5.76 Mbps DC-HSPA+: DL 42Mbps/UL 5.76 Mbps LTE FDD: DL 150 Mbps/UL 50 Mbps @20M Bandwidth cat4
Interface	Antenna interfaces * 2 M.2 Socket Signal Control interface USB 2.0 interface high speed USIM Card interface Power supply interface
Power Supply	3.135 V to 4.4 V (typical: 3.3 V)
Voice	NA
	GNSS:GPS Standalone, A-GPS, LTO, Glonass SIM Hotswap IPV6 BodySAR Tunable Antenna
Temp Range	Normal Operation: -10℃ to 55℃ Extended Operation: -20℃ to 70℃

  Packaging & Shipping Packing : General packing or as customized package   Delivery time : About 2-5 days after receiving the deposit
