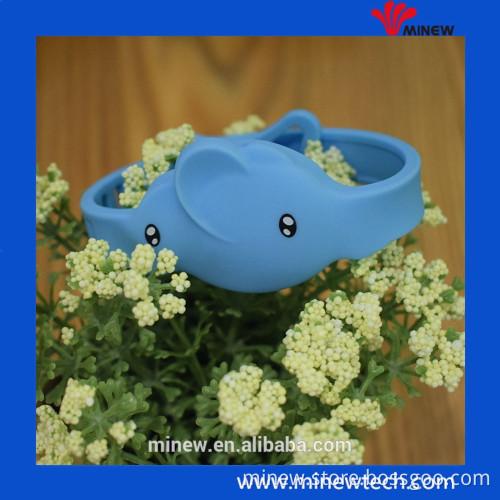

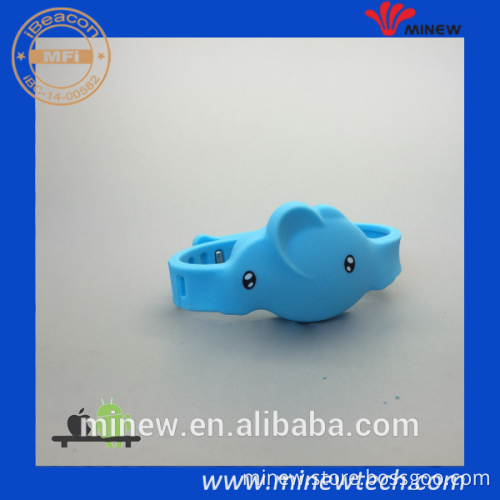

Customized OEM/ODM children anti lost wristband ibeacon

Customized OEM/ODM children anti lost wristband ibeacon   Product Description > Built-in MiniBeacon firmware, based on nRF51822 ARM core shipset > Support both iOS7.0 and Android 4.3 above system > The max. 30 meters advertising distance > Supported upgrade via Over-The-Air > Reserved J-Link port on the board for programming > CE/FCC/BQB EPL Approvals   FEATURES
- Programmed MiniBeacon standard firmware
- Powered by 1pc CR2016 coin batery
- Omni-directional PCB antenna
- The max. 30 meters advertising distance
- Waterproof IP66
- Ultra-low power consumption chipset nRF51822 with ARM core Product detail

Item	Value	Remarks
Firmware	BLE 4.0 Stack	V1.4x
Operation Voltage	1.8-3.6V	DC
Transmission Circuit	10.5mA (Max.)	Tested at 0dBm transmission power
Transmission Range	30 meters	Maximum
Antenna	50ohm	On board / PCB Antenna
Output Power	0 dBm	Default setting, programmable

   Specifications: MFI certification  Built-in iBeacon firmware Built-in a AAbattery holder Bluetooth low energy technology compatible Accurate digital RSSI Tested with iOS 7.0 and Android 4.3 and above iBeacon Descriptions: Run standalone as iBeacon, External host is not required. Application for advertisement and location Built in pairing password to prevent others to modify the settings  Support customize your own iBeacon configuration including UUID etc. Tx Power configurable Advertising frequecy configurable Support upgrade firmware through OAD (air upgrade)  Configure APP Appstore :BeaconCFG Google Play: BeaconCFG     https://play.google.com/store/apps/details?id=com.yunliwuli.beaconcfg&hl=en      Specification Built-in iBeacon firmware Built-in a coin battery Bluetooth low energy technology compatible Enable long range applications Accurate digital RSSI Compatible with CE and FCC regulation AES security coprocessor                                  Default Parameter:

Parameter	Default Value
UUID	E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
Major	0-65535(Default:0)
Minor	0-65535(Default:0)
Measured power	Default 0dBm
Transmission Power	-30To 0dBm(Default:0dBm)
Change Password	8 Characters(Letter Or Number)
Broadcasting Interval	100-1000ms(Default:900ms)
Serial ID	0-65535 Random
iBeacon Name	1-14 Characters,Default: MiniBeacon_xxxxx
Connection Mode	Yes(Connect)No(Disconnect)
Soft Reboot	Default Password:
Battery Service	The Front Battery Symbol, 100% Power

Simialr products Our Services - Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.   Exhibition show   Company Information Shenzhen Minew Technologies Co., Ltd. (Minew for short) has been focusing on developing and manufacturing iBeacon, bluetooth key finder and other RF technology-based creative products and technical services.
As a professional factory, Minew has got the ISO9001:2008 certification.   FAQ Do you have configure app and instruction? Yes,we will provide you after you buy our sample. Can I change the password? Yes,you can change what you want to set. Do you have SDK or the source code? Yes,we will provide you after sample was arrived. How to upgrade the firmware via over-the-air?   Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582. Any other more questions,pls contact us to know more. Customized OEM/ODM children anti lost wristband ibeacon    Customized OEM/ODM children anti lost wristband ibeacon Customized OEM/ODM children anti lost wristband ibeacon    Customized OEM/ODM children anti lost wristband ibeacon Customized OEM/ODM children anti lost wristband ibeacon    Customized OEM/ODM children anti lost wristband ibeacon
