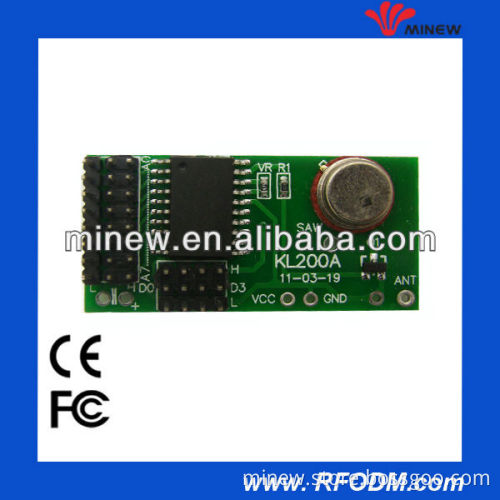

PT2262 transmitter module

Specifications 1.Tiny transmitter module

2.Low operation voltage

3.Low current consumption

RF Transmitter Module with PT2262 encoder chip for smoke detector.

Operation voltage	8.0-12.0V
Standby current	less 2uA
Operation frequency	315MHz, 433.92MHz
Frequency offset	+/-150KHz
Modulation	ASK (SAW Oscillator )
Transmission current	Less 18mA
Transmission power	15dBm
Encoder	PT2262 Fixed Code
Antenna	External
Package	DIP, 7pin (D0-D3, Vcc, GND, ANT)
Size	40mm*20mm*8mm
Certification	RoHS
