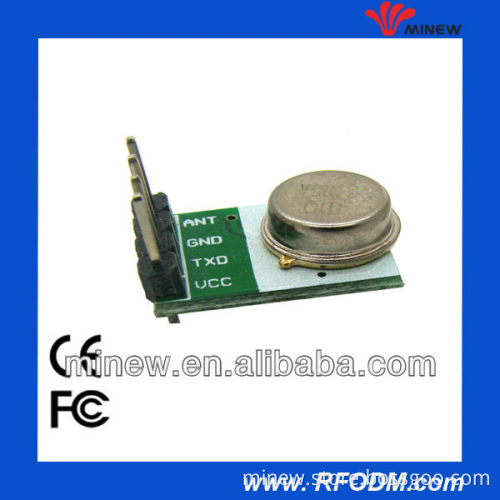

low cost 12V RF Transmitter Module based on SAW filter
- Delivery Time:
- 5 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications 1. low cost transmitter module
2. widely input voltage from 2.5 to 12Vdc
Features: 1. widely input voltage from 2.5Vdc to 12.0Vdc 2. the max. 15dBm output power 3. SAW based transmitter module 4. low cost ASK transmitter module 5. transmitting frequency 315MHz, 433MHz 6. RoHS compliant OEM and ODM oreders are welcomed!
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.
>>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
2. widely input voltage from 2.5 to 12Vdc
Features: 1. widely input voltage from 2.5Vdc to 12.0Vdc 2. the max. 15dBm output power 3. SAW based transmitter module 4. low cost ASK transmitter module 5. transmitting frequency 315MHz, 433MHz 6. RoHS compliant OEM and ODM oreders are welcomed!
Operation voltage | DC 12V |
Standby current | less 2uA |
Operation frequency | 315MHz, 433.92MHz |
Frequency offset | +/- 150KHz |
Modulation | ASK (SAW Oscillator ) |
Transmission current | less 18mA |
Transmission power | 15dBm |
Encoder | Null |
Antenna | External |
Package | DIP, 4pin |
Size | 17mm*12mm*6mm |
Certification | RoHS |
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.>>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
