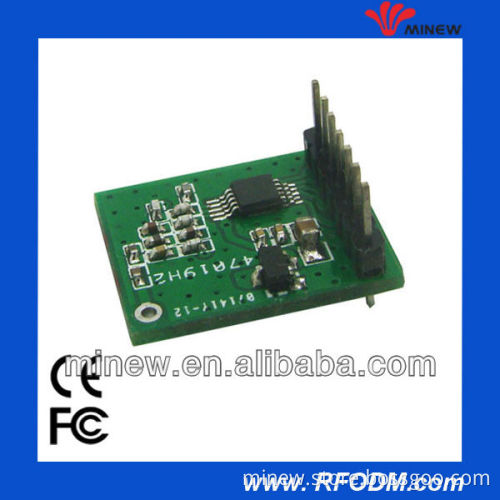

rf transmitter and receiver module 868 915mhz

Specifications 1.rf transmitter and receiver module

2.Tiny transmitter module

3.FSK Modulation

  Features:       1. low working voltage from 2.2V to 3.6V      2. save space, rf circuit and encoder integrated int one chip      3. learning code, the code is unique      4. ASK & FSK transmitter module, PLL technology       5. PCB antenna, easy to assembly     6. very strong anti-jamming ability     7. comply with CE (R&TTE) and FCC (Part 15.) regulations      8. RoHS compliant   It can be built in the fast frequency hopping system as customer's needs.     OEM and ODM orders are welcomed!     SAVE COST & SPACE!  RF and Encoder chip integrated into ONE!  The encoding ID is UNIQUE!

Operation voltage	2.2 - 3.6 Vdc
Standby current	less 2uA
Operation frequency	868MHz, 915MHz (Optional)
Frequency offset	+/- 50KHz
Modulation	FSK / OOK (Crystal Oscillator )
Transmission current	less 9mA
Transmission power	10dBm
Package	DIP, 7pin (D0 - D7, Vcc, GND, ANT)
Encoder(Optional)	Null
2rd Harmonic	less -36dBm
Antenna	External
Size	18mm*15mm*6mm
Certification	CE(R&TTE), RoHS

                                                                   Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.
>>>>>>>>>>>>>>>>>>  We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa.   Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
