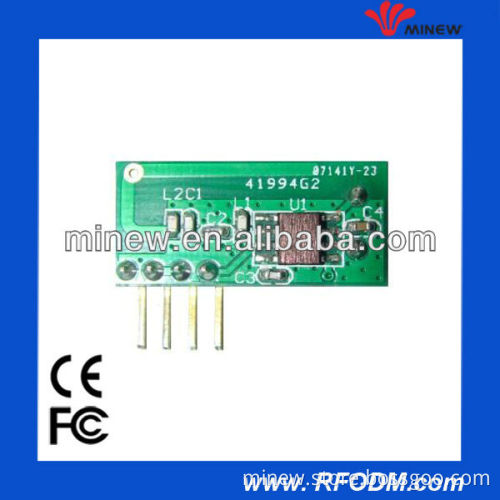

PCB antenna 315-433.92mhz receiver module

Specifications 1. PCB antenna 315-433.92mhz receiver module

2. Low current consumption

3. PCB antenna saving space

  Features:     1. PCB antenna, the antenna be placed on the receiver board     2. low power consumption 3mA at 3.0Vdc     3. 315MHz and 433.92MHz working frequency     4. comply with CE (R&TTE ) and FCC (part 15.) regulations     5. RoHS compliant     OEM and ODM are welcomed!

Operation voltage	DC 3.0V, DC 5.0V
Standby current	<1uA
Operation frequency	315MHz,433MHz
Modulation	Super-Heterodyne (Crystal Oscillator)
Operation current	4.0mA (DC 3.0V)
Data rate	<10Kbps
Receiving Sensitivity	-106dB (Typ.)
Decoder	External decoder (PT2272,1527,301,MCU)
Output channel	Serial Data (1pin)
Antenna	Printed Circuit Antenna
Package	DIP, 4pin
Size	25mm*12mm*6mm
Certification	CE(R&TTE), FCC(Part 15.), RoHS

                                    Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.
>>>>>>>>>>>>>>>>>>  We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa.   Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
