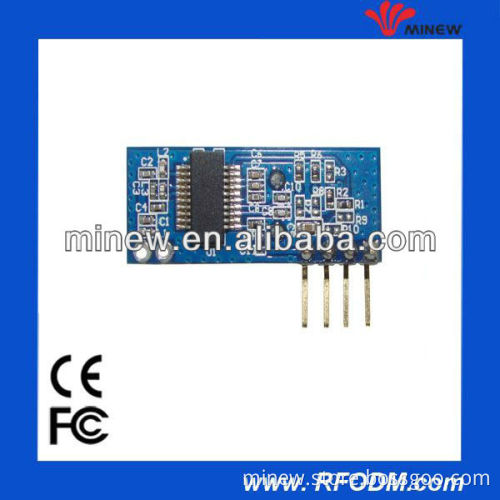

low voltage and low cost rf receiver module CWC09

Specifications 1. low voltage and low cost rf receiver module CWC09

2. superheterodyne modulation

Features:     1. low operation voltage 2.1Vdc to 5.2Vdc     2. very high receiving sensitivity up to -112dBm     3. very strong anti-disturbing ability     4. serial data output     5. PLL technology, superheterodyne receiver module     6. operation frequency 315Mhz, 433.92MHz     7. comply with CE (R&TTE ) and FCC (part 15.) regulations     8. RoHS compliant   OEM and ODM are welcomed!

Operation voltage	DC 2.1-5.2V
Standby current	<1uA
Operation frequency	315MHz, 433MHz
Modulation	Super-Heterodyne (Crystal Oscillator)
Operation current	4.0mA (DC 3.0V)
Data rate	<10Kbps
Receiving Sensitivity	-110dB (Typ.)
Decoder	External decoder (PT2272,1527,301,MCU)
Output channel	Serial Data (1pin)
Antenna	External
Package	DIP, 4pin
Size	30mm*16mm*6mm
Certification	CE(R&TTE), FCC(Part 15.), RoHS
