strong anti-jamming function rf vhf receiver module 433.92mhz for high-end industry application
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description

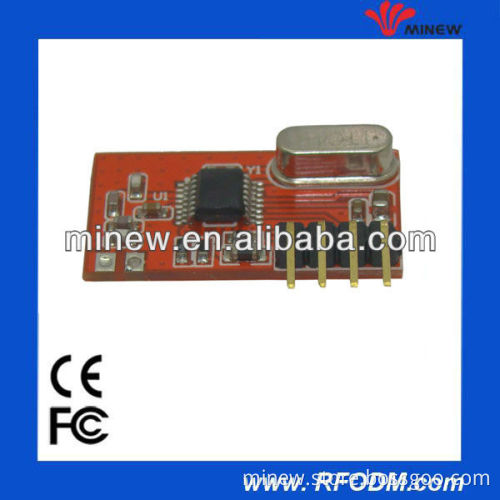

Specifications 1. strong anti-jamming function rf vhf receiver module 433.92mhz for high-end industry application
Features: 1. low operation voltage 3.0Vdc to 3.6Vdc 2. very high receiving sensitivity up to -112dBm 3. very strong anti-jamming function 4. serial data output 5. PLL technology, superheterodyne receiver module 6. operation frequency 433.92MHz 7. comply with CE (R&TTE ) and FCC (part 15.) regulations 8. RoHS compliant OEM and ODM are welcomed!
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.
>>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
Features: 1. low operation voltage 3.0Vdc to 3.6Vdc 2. very high receiving sensitivity up to -112dBm 3. very strong anti-jamming function 4. serial data output 5. PLL technology, superheterodyne receiver module 6. operation frequency 433.92MHz 7. comply with CE (R&TTE ) and FCC (part 15.) regulations 8. RoHS compliant OEM and ODM are welcomed!
Operation voltage | DC 3.0-3.6V |
Standby current | <1uA |
Operation frequency | 433MHz |
Modulation | Super-Heterodyne (Crystal Oscillator) |
Operation current | 5.0mA (DC 3.0V) |
Data rate | <10Kbps |
Receiving Sensitivity | -110dB (Typ.) |
Decoder | External decoder (PT2272,1527,301,MCU) |
Output channel | Serial Data (1pin) |
Antenna | External |
Package | DIP, 3pin |
Size | 27mm*14mm*6mm |
Certification | CE(R&TTE), FCC(Part 15.), RoHS |
Minew company is not only a professional RF / Wireless products design-house, but also a verified manufacturer by Alibaba. Due to our outstanding design capabilities and extensive manufacturing experience, we can rapidly develop and produce RF & Wirelss products as global client's requirements.>>>>>>>>>>>>>>>>>> We have been producing wirless remote control, RF transmitter and receiver modules, wireless receiver control switch, wireless detectors(PIR Motion sensor, door soor, gas detector, smoking deteckor, water leaking detector, etc.) and home / business burglar alarm system. Our standard products are exported to Europe, America, Asia , Australia and Africa. Our service: Turnkey product design & One-stop manufacturing We will be pleased to begin working with you!
